Can-Bus Control
Intelligent Touch Screen Display

The J&R Control is a

CAN-Bus Control System adapted to control retrofitted equipment in a vehicle.
Programmable Control Modules CAN-Bus Programmable Control Modules offers increased performance, added flexibility .
Intelligent Touch Screen Display Intelligent Touch Screen Display with CAN bus ideal for showing multiple buttons and gauges .
Can bus Touchscreen Display Intelligent LCD with CAN bus ideal for showing multiple buttons and gauges .
Analog
wiring
Analog wiring
CAN bus wiring
CAN bus wiring
Keypad with CAN bus

One stop to control your entire vehicle.

Low Power Sleep Mode: 4mA.

800x480 Resolution, TFT LCD Display with integrated Touch Panel.

On-board CAN bus, communication available immediately on power-up.

Programmable with Do-It-Yourself "CANprog" software.

In-system programming through CAN bus ("CANprog" software).

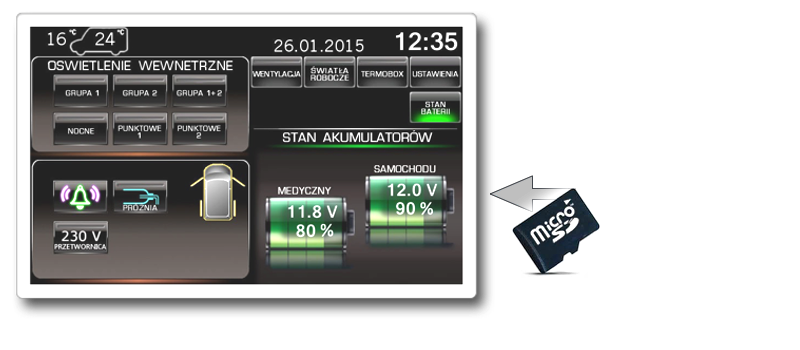

On-board micro-SD memory card connector for graphic storage.

Preloaded Industrial microSD Card.

PWM controlled backlight brightness.

Real Time Clock Calendar.

Operating Voltage Range: 8 to 17 VDC (Up 32V is available on request).

Operating Temperature: -20°C to 70°C.





OVERVIEW

Control System with CAN bus
CAN bus Control System

Intelligent Touch Screen Display

TOTAL VEHICLE CONTROL

SPECIFICATION

Inelligent Control System with CAN bus
LCD Control System with CAN bus

Programmable Control Modules

Control Modules offers increased performance, added flexibility.

Reduced development time.

On-board CAN bus, communication available immediately on power-up.

Programmable with Do-It-Yourself "CANprog" software.

In-system programming through CAN bus ("CANprog" software).

Low Power Sleep Mode: 0.5mA (500𝜇A)!

Electronic over-load protection and thermal protection.

All inputs and outputs are protected against shorts to Battery(+) or Battery(-).

Operating Voltage Range: 7 to 17 VDC (Up 32V is available on special request).

Operating Temperature: -30°C to 80°C.



Control Modules allows you to distribute electronic control judiciously to various

quadrants or input/output concentration areas on your vehicle, coordinating electronic

sensors and operator inputs with output devices and actuators using computer logic.

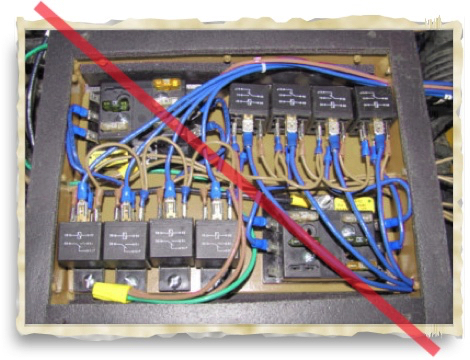

Go from antiquated ...

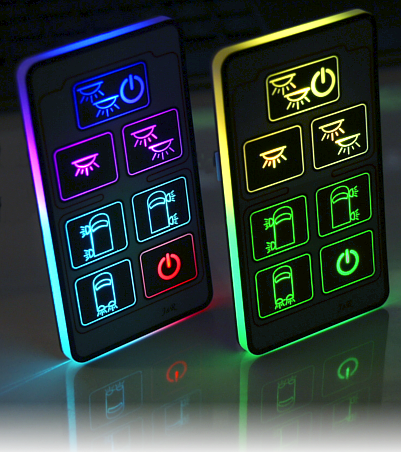

Multi-Color 7-Button Panel

Software controllable color buttons can be programmed

    to be any color combination.

Reduced development time.

Reduce wiring complexity and cost.

Front face is splash resistant.

On-board CAN bus, communication available immediately on power-up.

Programmable with Do-It-Yourself "CANprog" software.

In-system programming through CAN bus ("CANprog" software).

Low Power Sleep Mode: 0.37mA (370𝜇A)!

Operating Voltage Range: 7 to 17 VDC.

Operating Temperature: -30°C to 80°C.


J&R company designs and manufactures compact Intelligent Display Modules using the LCD technology with an embedded graphics

processor.   We design and manufacture also programmable modules for management for each vehicle with CAN bus.

J&R is experienced at designing control systems that make use of CAN bus.

Our range of products can be utilized for rapid development as stand-alone systems.

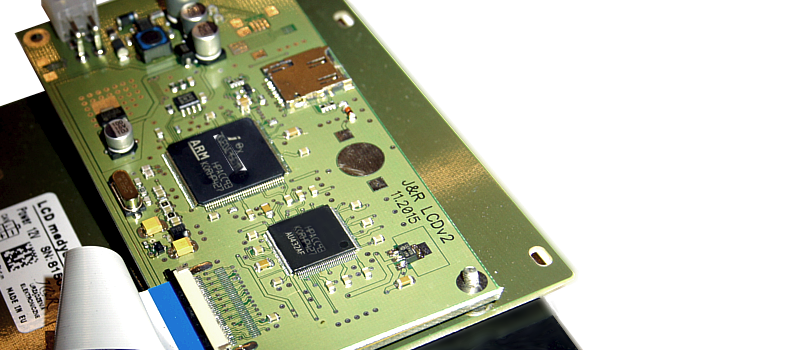

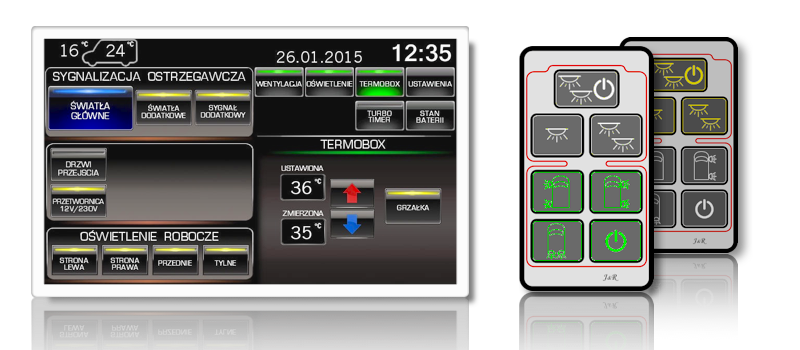

Operating LCD with CAN bus CAN bus Keypad LCD CAN bus for management

Large 7" and 9" sunlight readable display makes the Intelligent Display ideal for

showing multiple buttons and gauges of data simultaneously to help eliminate

mechanical buttons and mechanical gauges.

SPECIFICATION

Ambulance CAN bus management
Ambulance Modules CAN bus for management

OVERVIEW

Ambulance Modules
Modules CAN bus for Ambulance management

OVERVIEW

Ambulance management
Modules CAN bus Ambulance

... to modern!

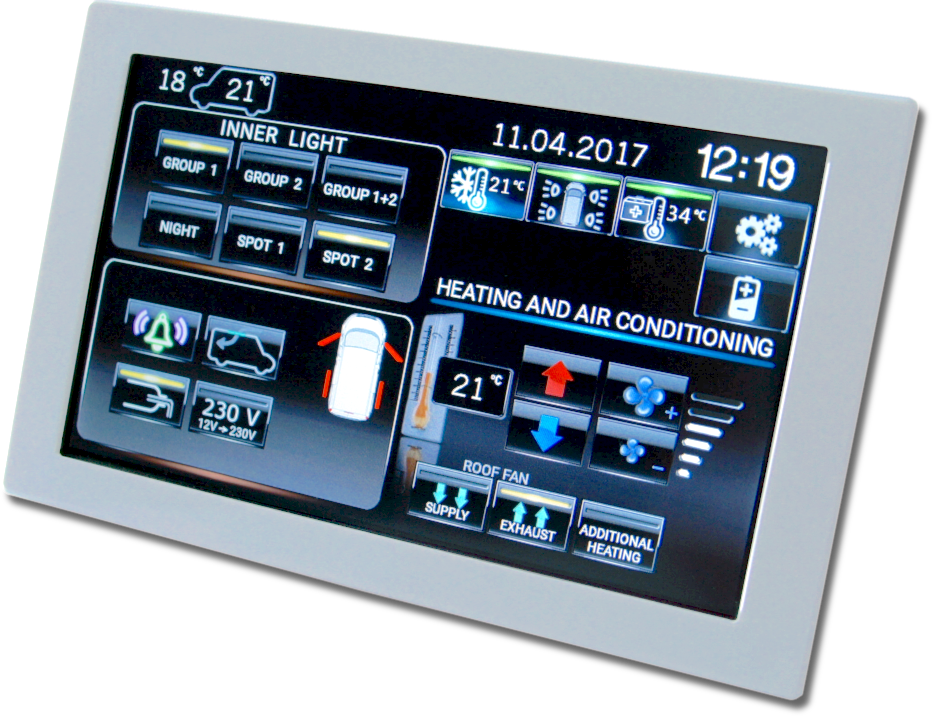

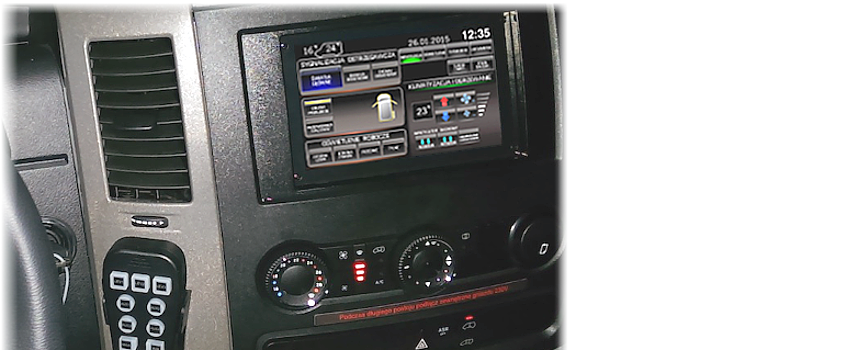

Driver operating panel with CAN bus
Medical operating panel with CAN bus

Go from antiquated ...

... to modern!

Modules CAN bus

Benefits of Control Modules:

• Easy Plug & Play installation.

• Lcate I/O modules close to the source

   for simple distributed intelligent

   controlwiring

• Reduce wiring complexity and cost

• Quickly introduce new vehicle features

   with minimal hardware modifications

• Simplify vehicle troubleshooting

• Easily add production or aftermarket

   cost options while keeping base unit

   low

• Separate from the vehicle CAN system

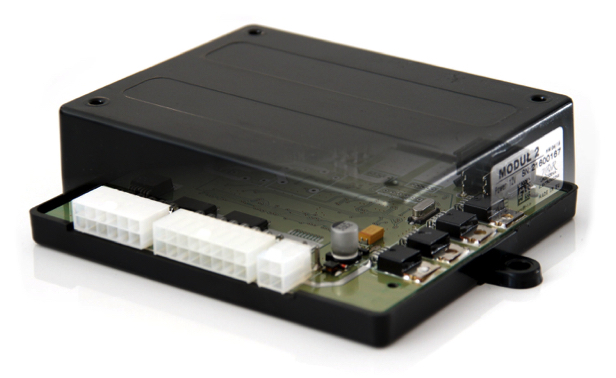

Modules CAN bus for management
CAN bus Programmer for management

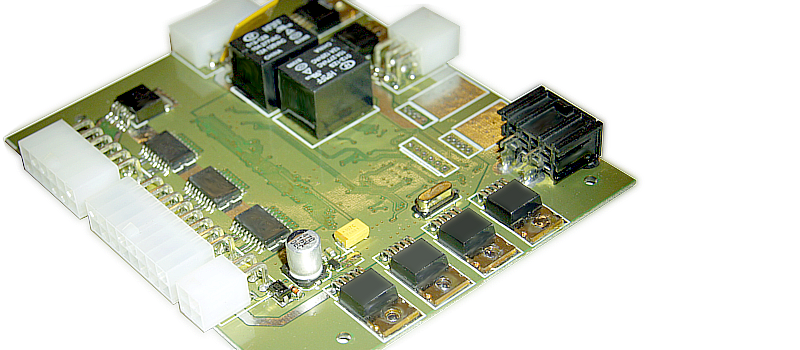

Programmable Control Modules
Intelligent Touch Screen Display with CANbus

Even if you need to enrich the electronic control, the number of wires involved can quickly

add up. CAN bus allows control of multiple functions through a single pair of wires,

eliminating the need for complex wiring harnesses.

Intelligent Display with CAN bus

Analog wiring

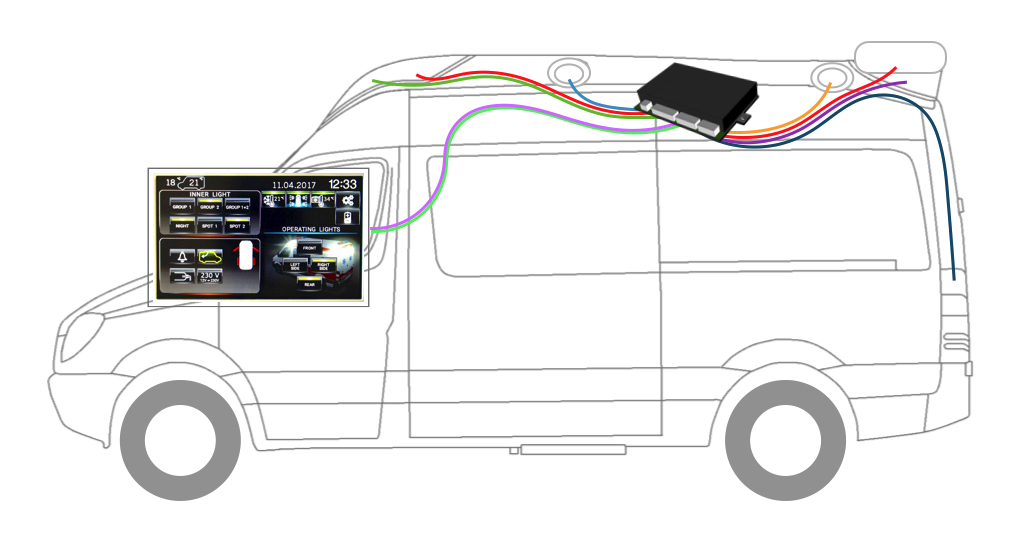

Wiring with Control Module

SPECIFICATION

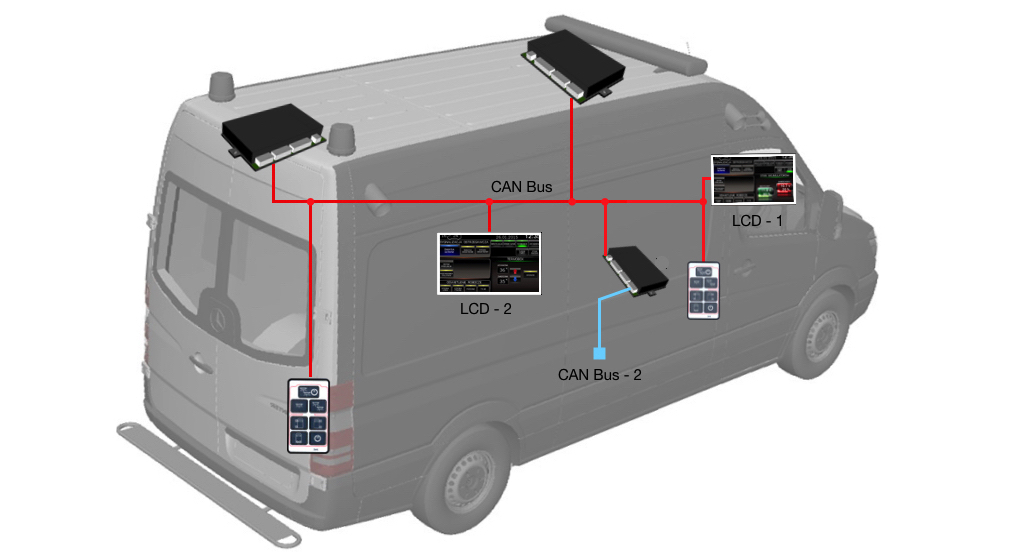

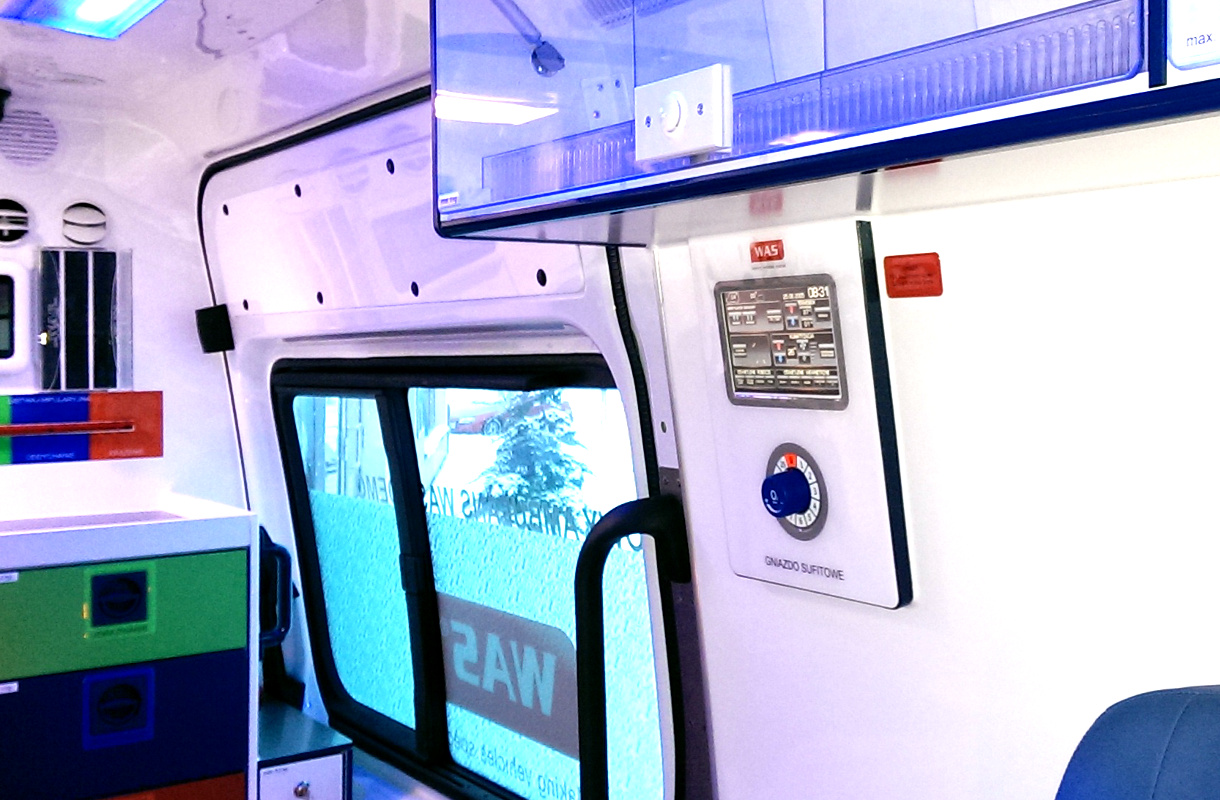

Ambulance with CAN bus operating panel
Touch Screen Control Panel in enclosure
CAN bus for management
In-Wall Mount Touch Screen Control Panel

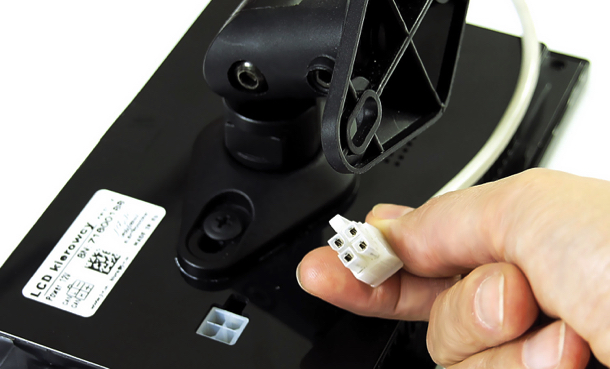

LCD Ambulance CAN-bus Control
In-Wall Mount Touch Screen Control Panel

Benefits of Intelligent Display:

• Easy Plug & Play installation.

• Reduce wiring complexity and cost

• Quickly introduce new vehicle features

   with minimal hardware modifications

• Simplify vehicle troubleshooting

• Easily add production or aftermarket

   cost options while keeping base unit

   low

• Separate from the vehicle CAN system

Programmable Control Modules with CAN-Bus

Only four wires are sufficient for working!

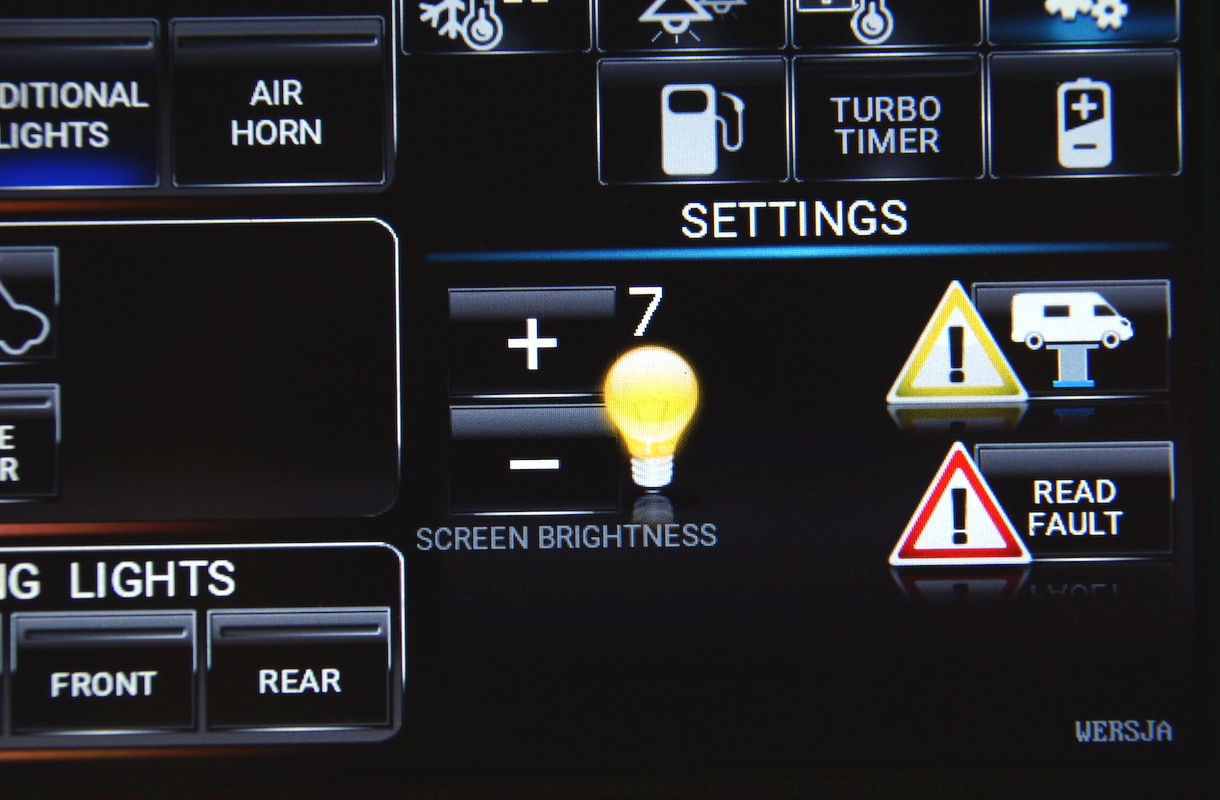

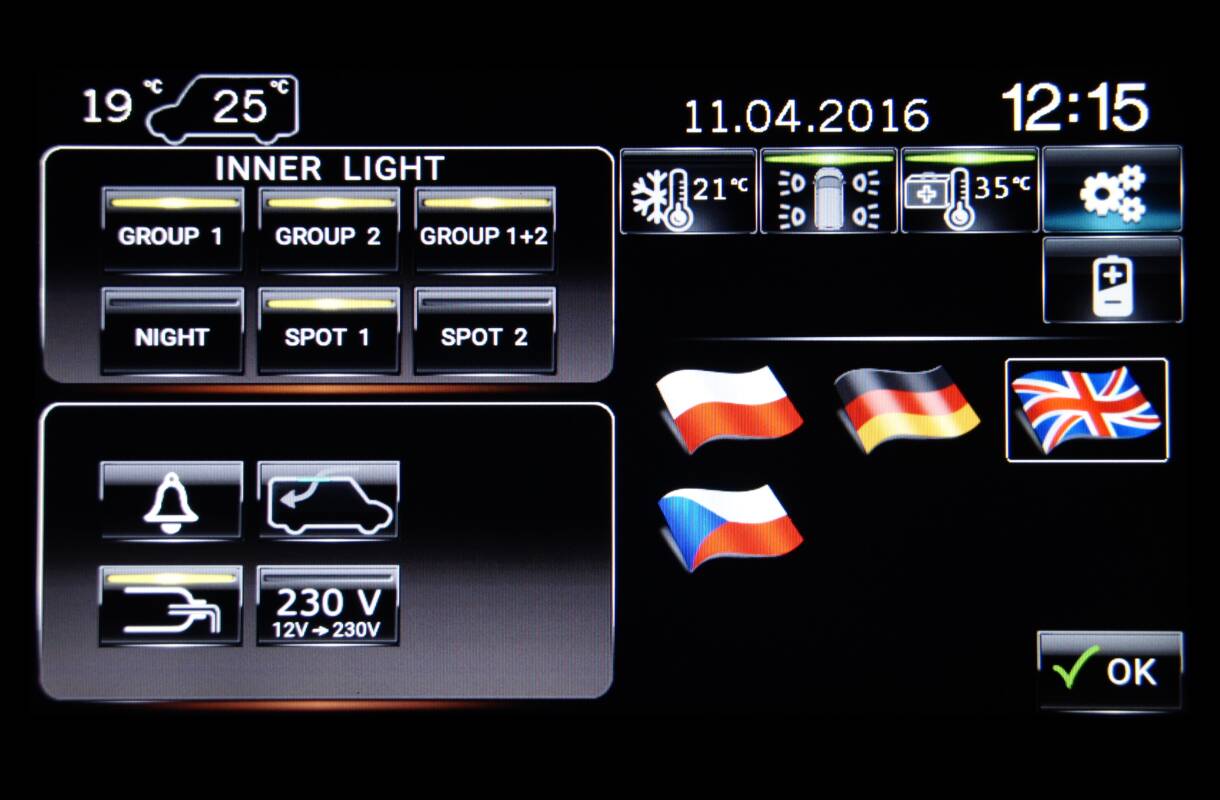

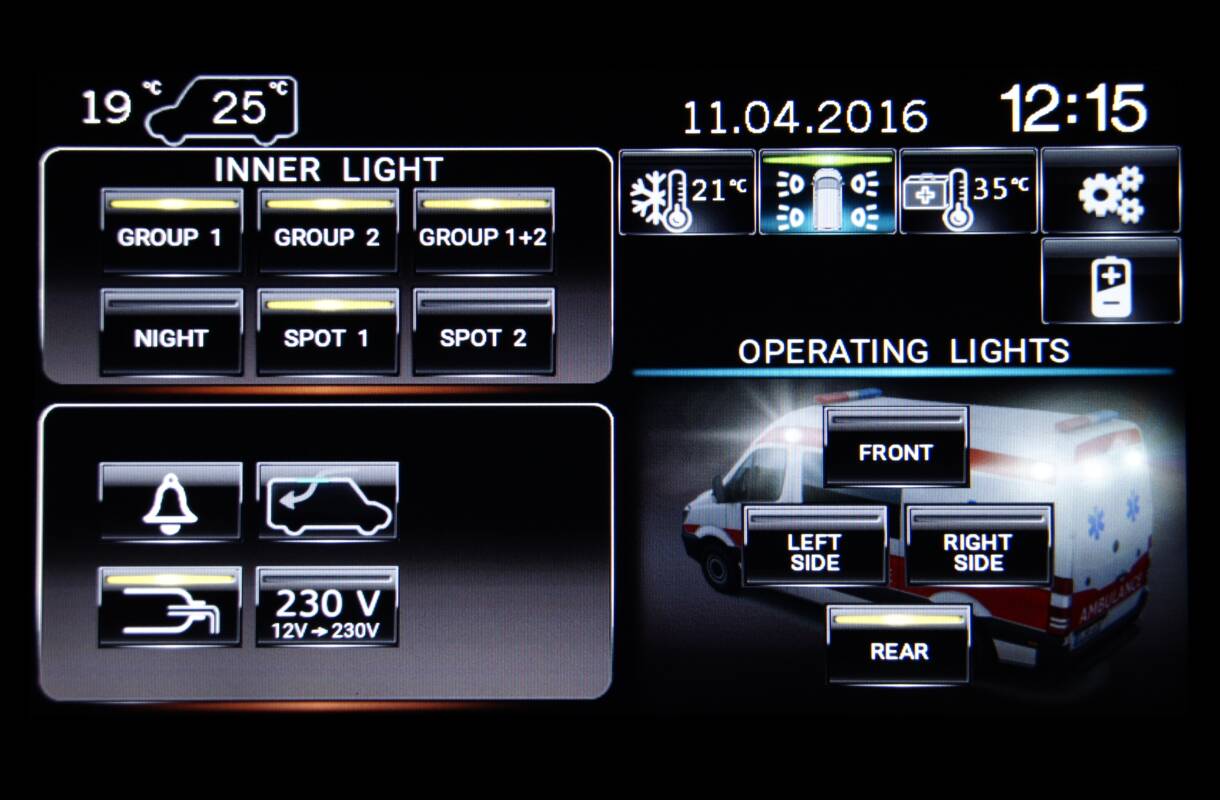

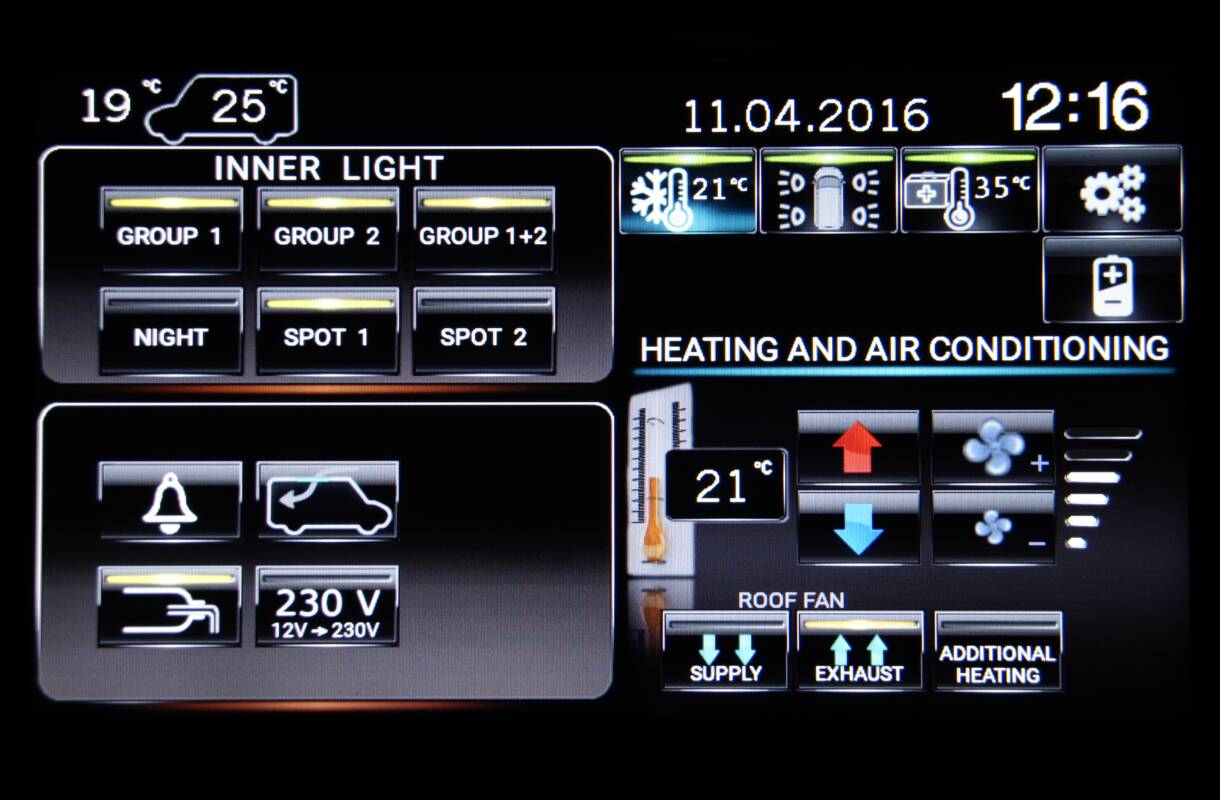

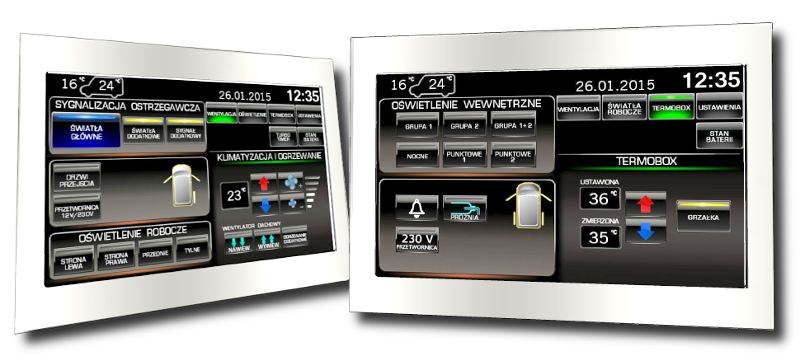

LCD screen settings
Ambulance with CAN bus operating panel

Back to top

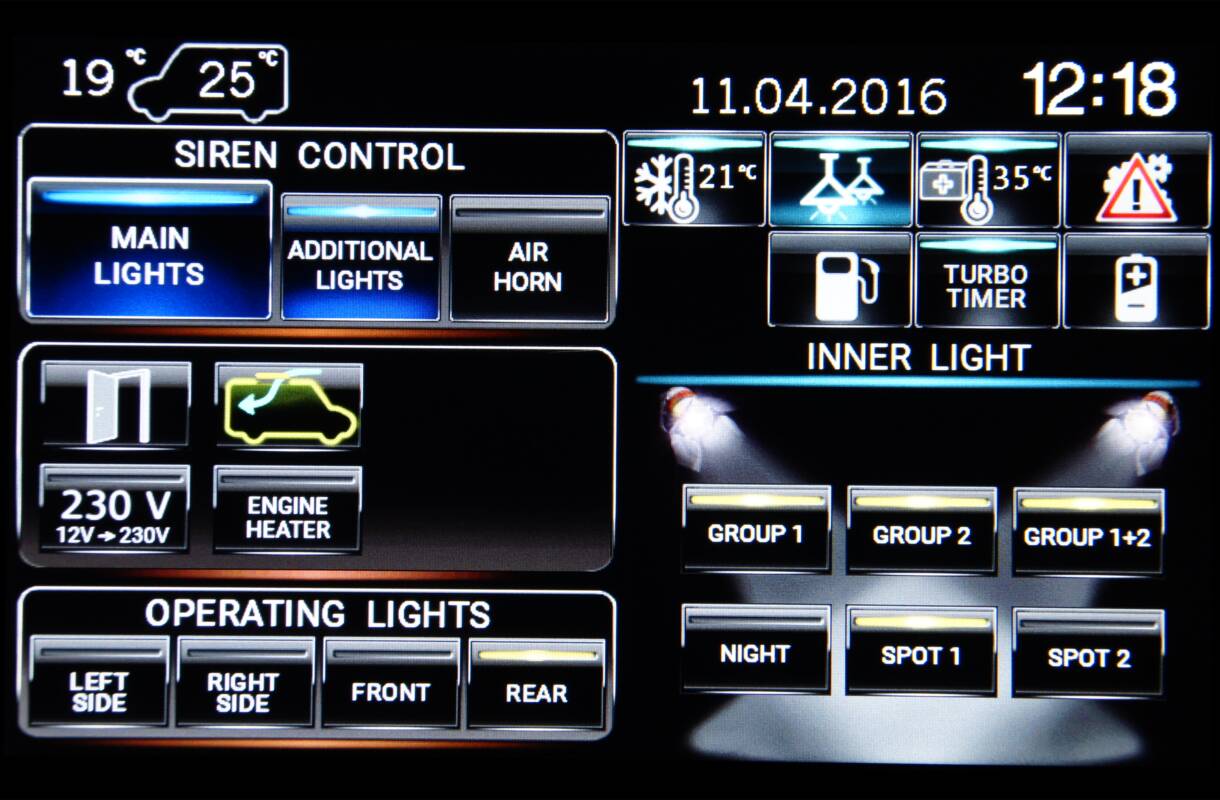

Programmable Touch screen with CAN-Bus control electronics for lighting, warning and energy management.

Some of the features:

● Light control internal - group 1, group 2, spot, night

● Light control external - working light

● Siren and strobe lighting control

● Detailed door open indication

● Voltage display for both vehicle and additional battery

● Automatic display of low voltage

● Fuse failure display with additional information

● Thermobox heater control

● Electric fan heater, thermostatically controlled

● 230V power supply monitoring

● Main power switch monitoring

● Inverter 12V/230V control and condition indication

● Side step open indicator

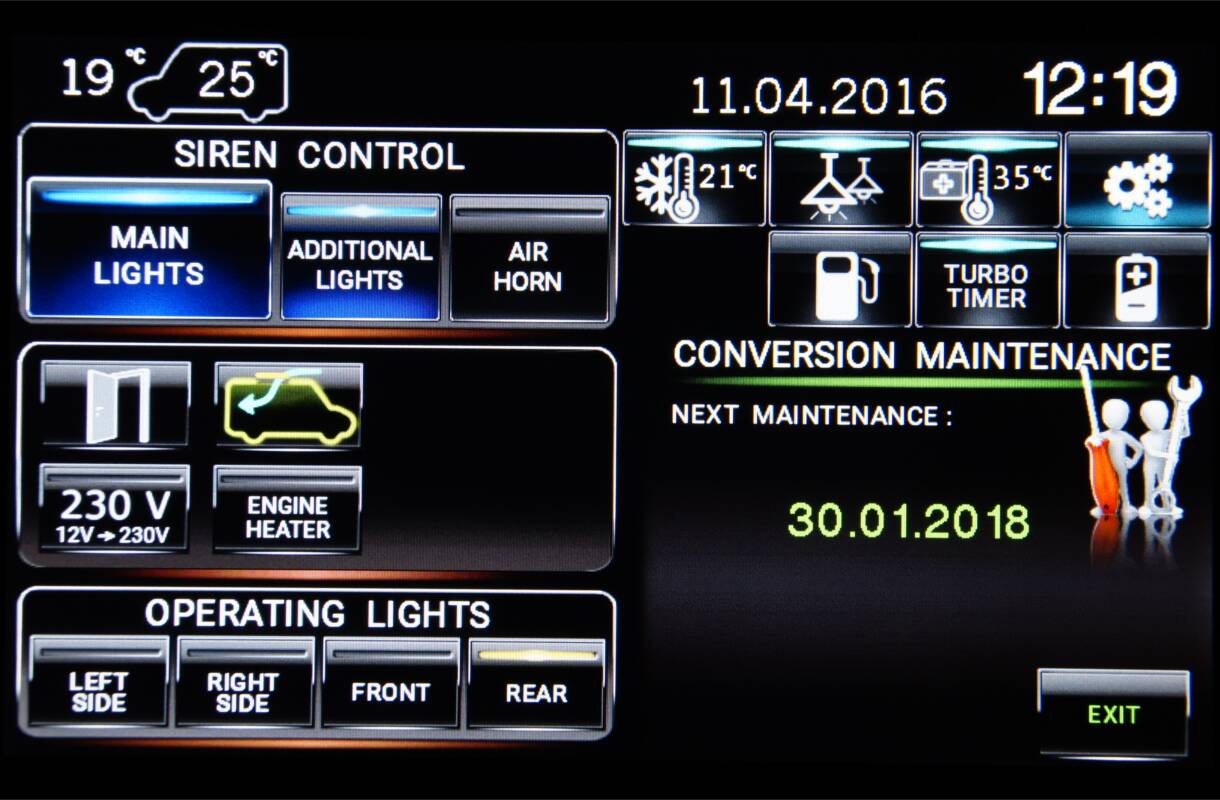

● Maintenance condition monitoring for a conversion

● Exterior themperature indicator

● Interior themperature indicator

● Thermobox themperature indicator

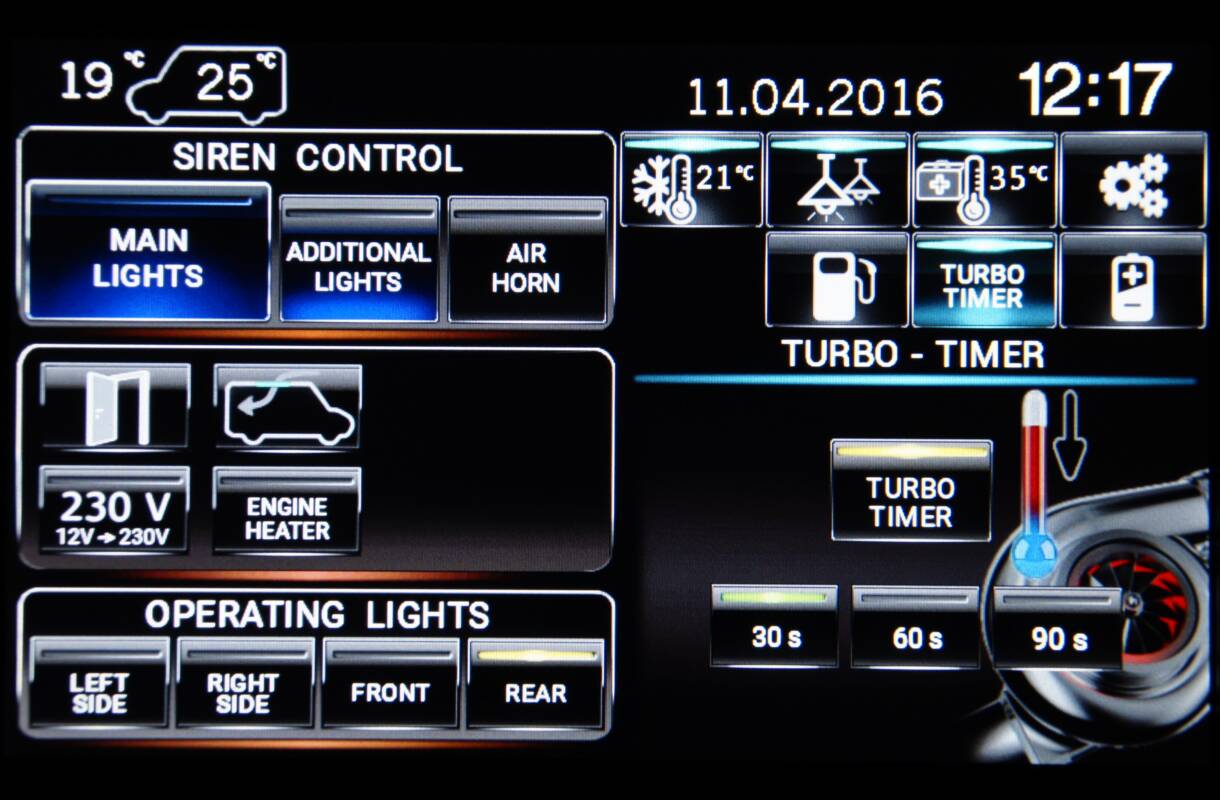

● Turbo-Timer control - cooling the turbocharger

● Sunroof control

● Medical suction pump control



The Operating Panel pictures

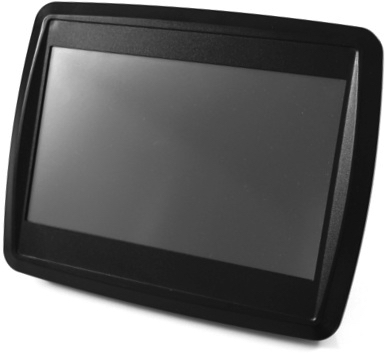

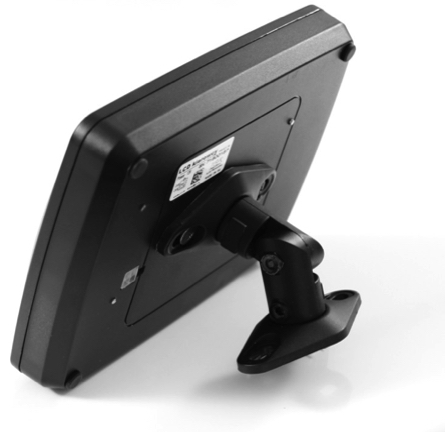

Touch Screen Control Panel in enclosure
CAN bus for management

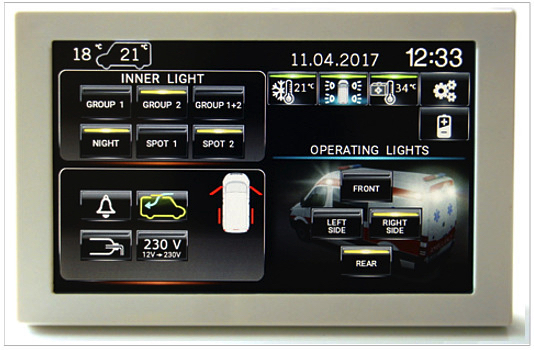

Touchscreen Control Panel in enclosure

● Display: 7-inch TFT LCD

● Display format: 800 x 480

● Display Area: 152.4(H) x 91.44(V)

● Aspect ratio: 16:9

● Brightness: 320 cd/m2

● Backlight: LED

● Power supply: DC 8V to 17V (Up 32V on special request)

● Power Current: operate 370mA, Sleep mode 4mA

● Interface: CAN-Bus 2.0

● Operating Temperature: -20°C to 70°C

● Dimensions (HxWxD): 150mm x 190mm x 30mm

● Touch Panel Type: Resistive

● Material: ABS UL-94, Black or White

● Net Weight: 465gr.

● IP Rating: IP41

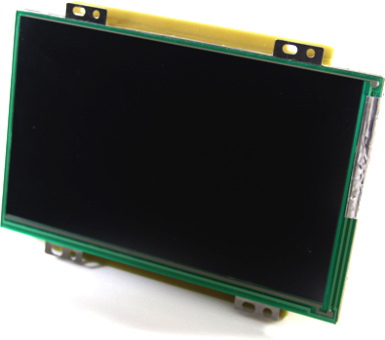

In-Wall Mount Touch Screen Control Panel

In-Wall Mount Touchscreen Control Panel

● Display: 7-inch TFT LCD

● Display format: 800 x 480

● Display Area: 152.4(H) x 91.44(V)

● Aspect ratio: 16:9

● Brightness: 320 cd/m2

● Backlight: LED

● Power supply: DC 8V to 17V (Up 32V on special request)

● Power Current: operate 370mA, Sleep mode 4mA

● Interface: CAN-Bus 2.0

● Operating Temperature: -20°C to 70°C

● Dimensions (HxWxD): 104mm x 165mm x 25mm

● Touch Panel Type: Resistive

● Net Weight: 275gr.

● Real Time Clock

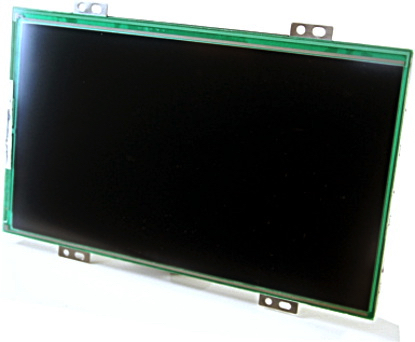

In-Wall Mount Touch Screen Control Panel

In-Wall Mount Touchscreen Control Panel

● Display: 9-inch TFT LCD

● Display format: 800 x 480

● Display Area: 198(H) x 112.08(V)

● Aspect ratio: 16:9

● Brightness: 320 cd/m2

● Backlight: LED

● Power supply: DC 8V to 17V (Up 32V on special request)

● Power Current: operate 410mA, Sleep mode 4mA

● Interface: CAN-Bus 2.0

● Operating Temperature: -20°C to 70°C

● Dimensions (HxWxD): 126.4mm x 210.7mm x 28mm

● Touch Panel Type: Resistive

● Net Weight: 500gr.

● Real Time Clock



Dimension

Dimension

Dimension

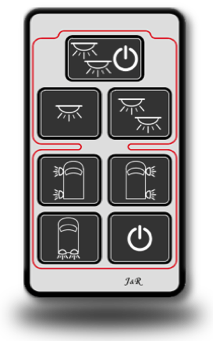

Multi-Color 7-Button Panel

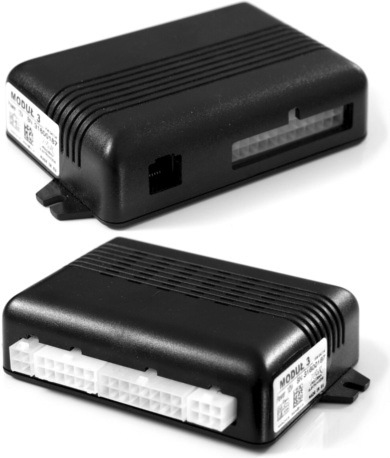

Programmable Control Modules with CAN-Bus

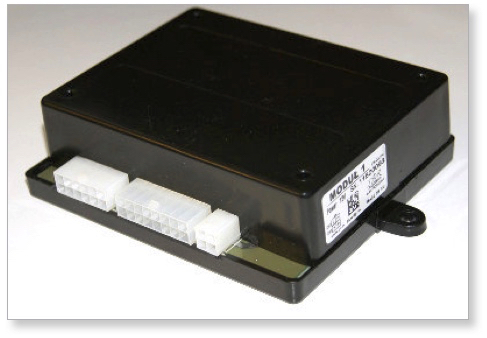

Programmable Control Modules CAN-Bus x1

● Interface: 1x CAN-Bus 2.0

● Unit Connection: 2pin, 4pin, 4pin, 6pin, 12pin, 16pin

● High Side Output: 2x 14Amp, 8x 7A, 12x 2.3A, 2x 2A, 3x 0.5A

● Over-Current Protection, each channel

● Input: 5x Digital, 2x Analog

● Power supply: DC 7V to 17V (Up 32V on special request)

● Power Current: operate 30mA, Sleep mode 0.5mA

● Operating Temperature: -30°C to 80°C

● Module Size: 98mm(D) x 130mm(W) x 40mm(H)

● Material: ABS UL-94, Black

● Net Weight: 210gr.

● IP Rating: IP41


Dimension

Brochure

Programmable Control Modules with CAN-Bus

Schema

With Bezel

With Bezel

Programmable Control Modules CAN-Bus x3

● Interface: 3x CAN-Bus 2.0

● Separate from the vehicle CAN system

● Unit Connection: 4pin, 6pin, 12pin, 16pin, 24pin, RJ-8

● High Side Output: 6x 2.3Amp

● Over-Current Protection, each channel

● Low Side Output: 7x 0.4Amp

● Input: 12x Digital, 26x Analog

● Power supply: DC 7V to 17V (Up 32V on special request)

● Power Current: operate 50mA, Sleep mode 0.7mA to 1.3mA

● Operating Temperature: -30°C to 80°C

● Module Size: 80mm(D) x 114mm(W) x 32mm(H)

● Material: ABS UL-94, Black

● Net Weight: 130gr.

● IP Rating: IP41


Dimension

Some of the features:

● Fan speed infinitely adjustable for AC

● Fan speed infinitely adjustable for heater

● Temperature measurement using digital sensor

● Thermobox heater and temperature control

● Fuel-operated heaters control (Webasto, Eberspaecher, ...)

● Siren System control (Code3, Federal, Gamet, ...)

● Additional Turn Indicator Light

● Additional Stop Light

● Exterior Lighting

● Interior Lighting

● Sunroof control

● Medical suction pump control

● Inverter 12V/230V control

Remote light control using CAN-bus Keypads mounted at the door.

Each button has two physical switches and multicolour status LED's providing an excellent interface.

Only four wires are sufficient for working!

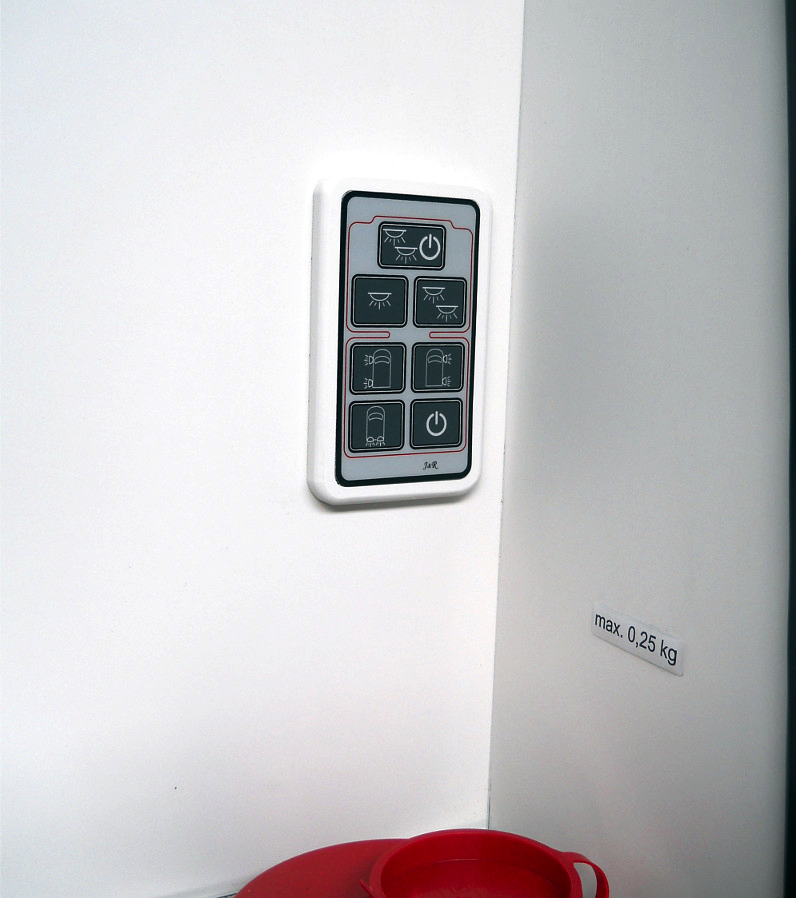

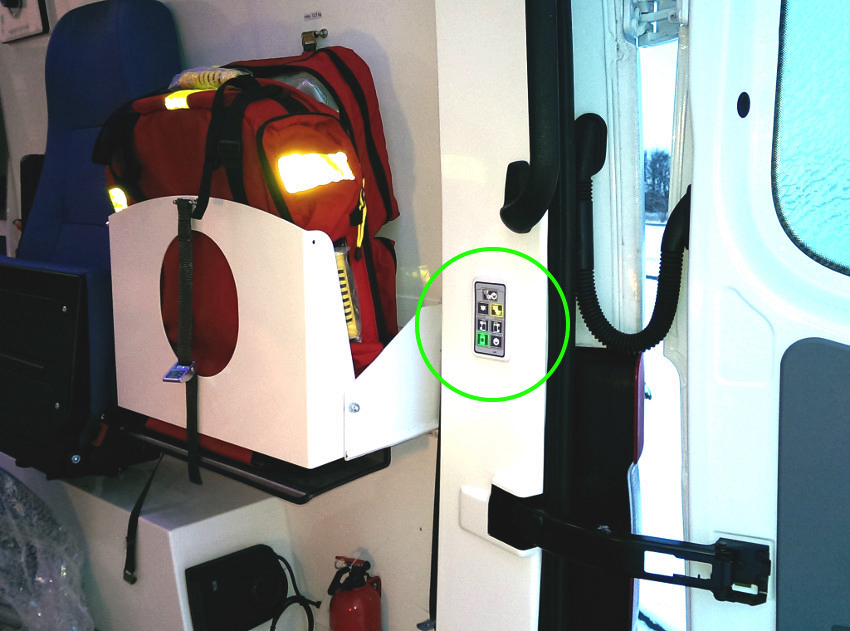

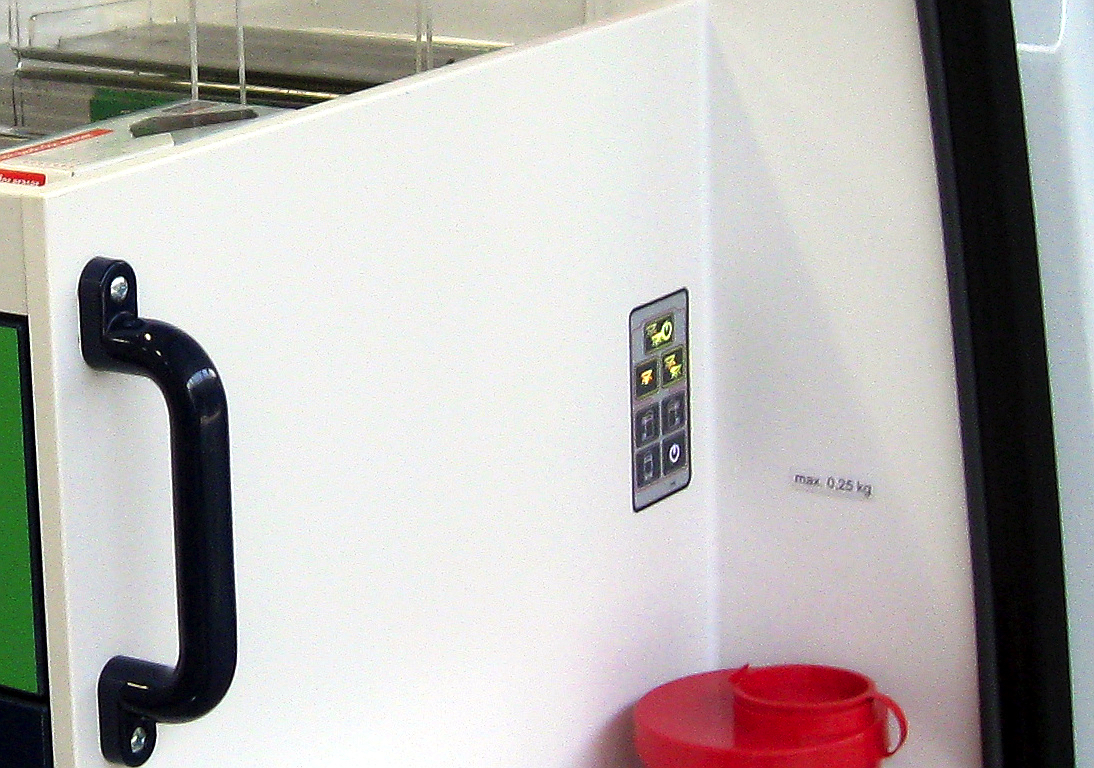

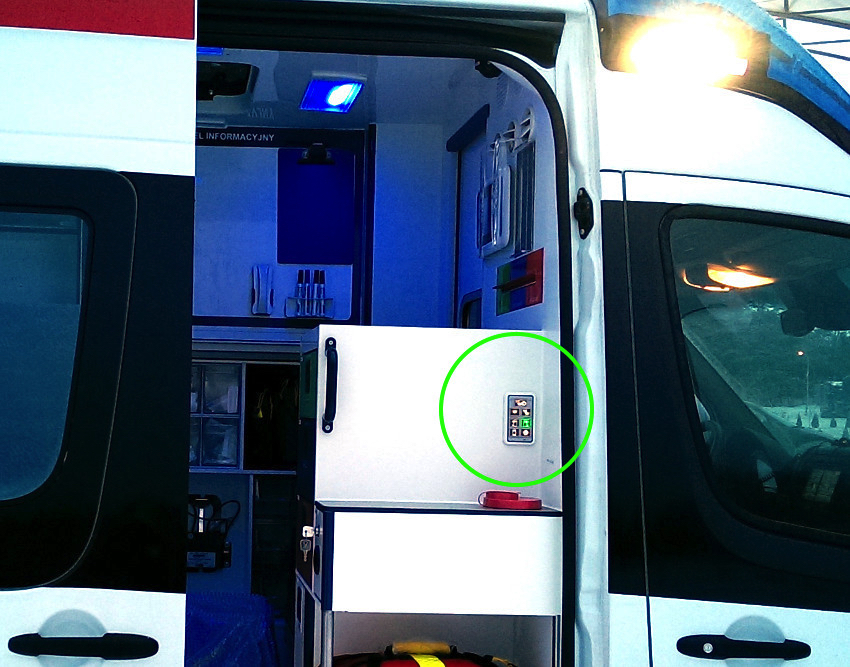

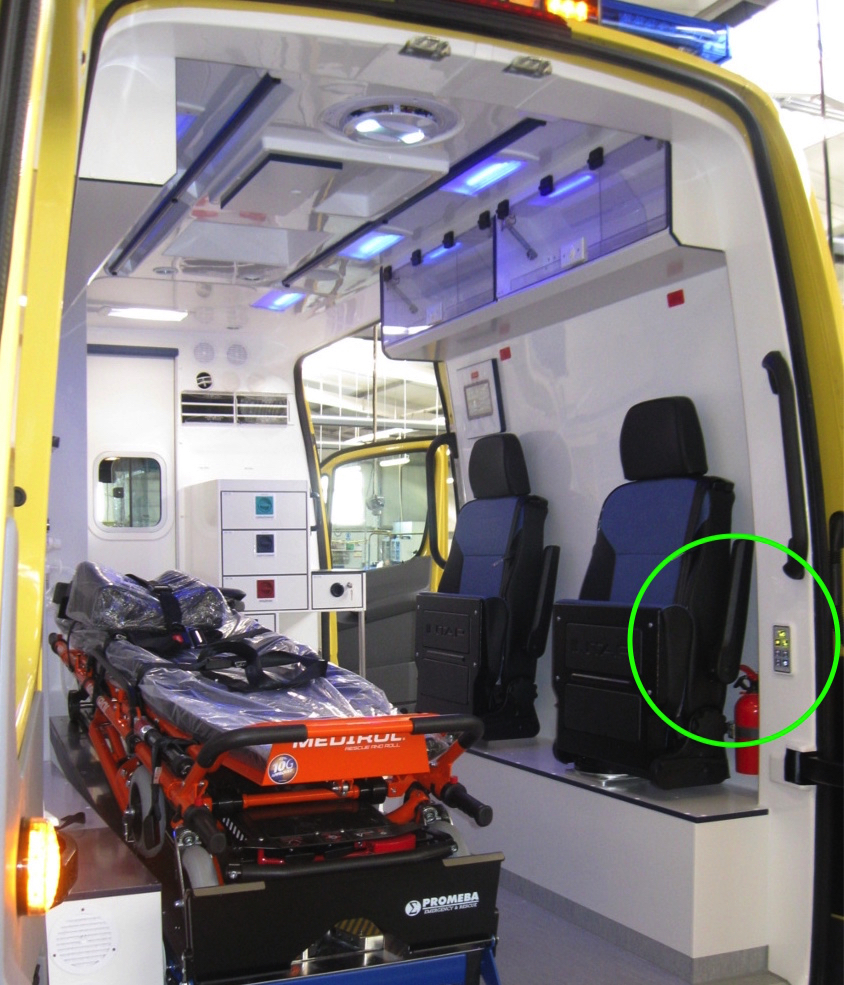

Button Panel mounted at the side door.
Button Panel mounted at the side door.

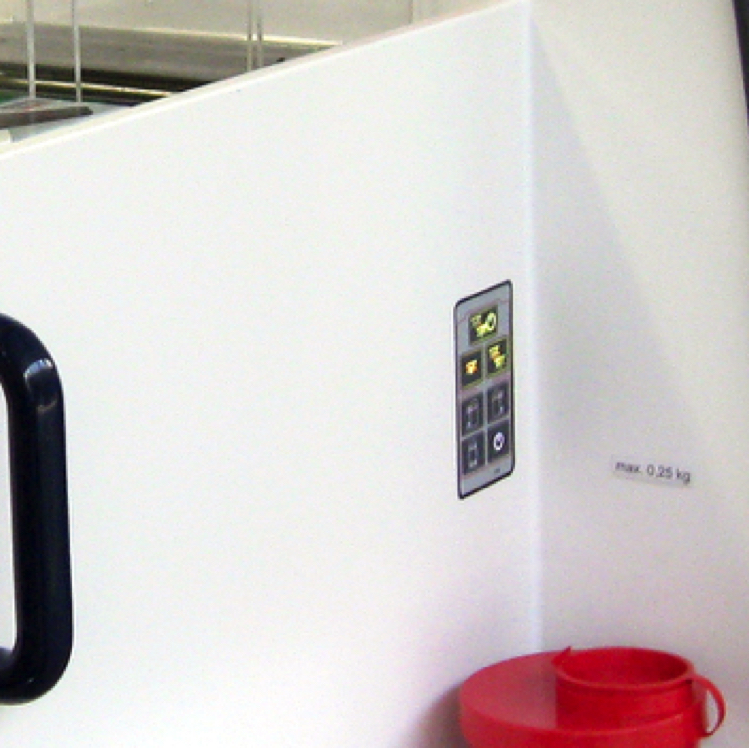

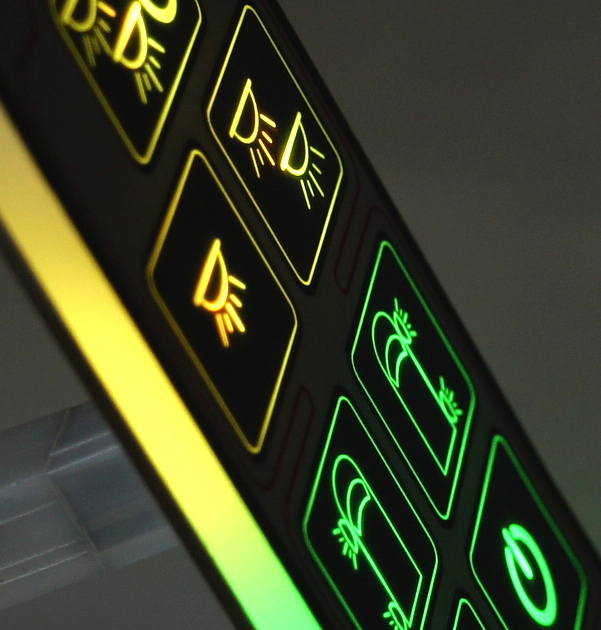

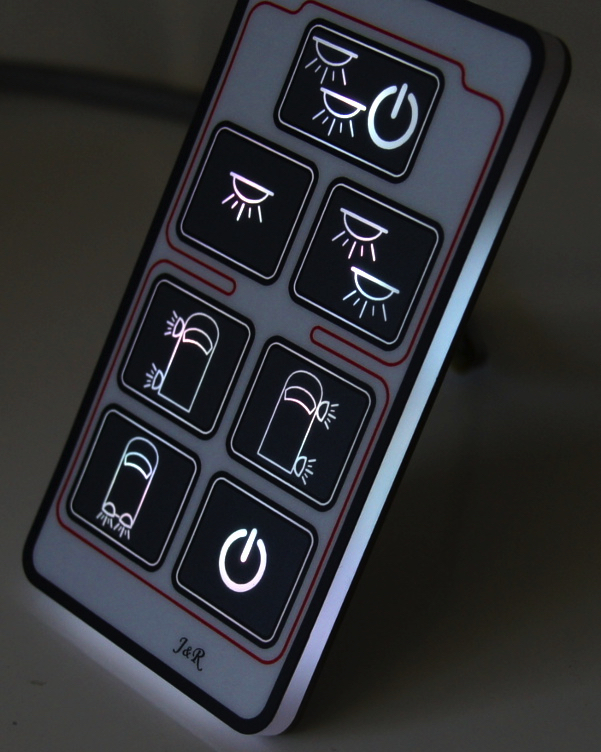

Multi-Color 7-Button Panel
inside
Multi-Color 7-Button Panel inside
Multi-Color 7-Button Panel inside
Multi-Color 7-Button Panel inside

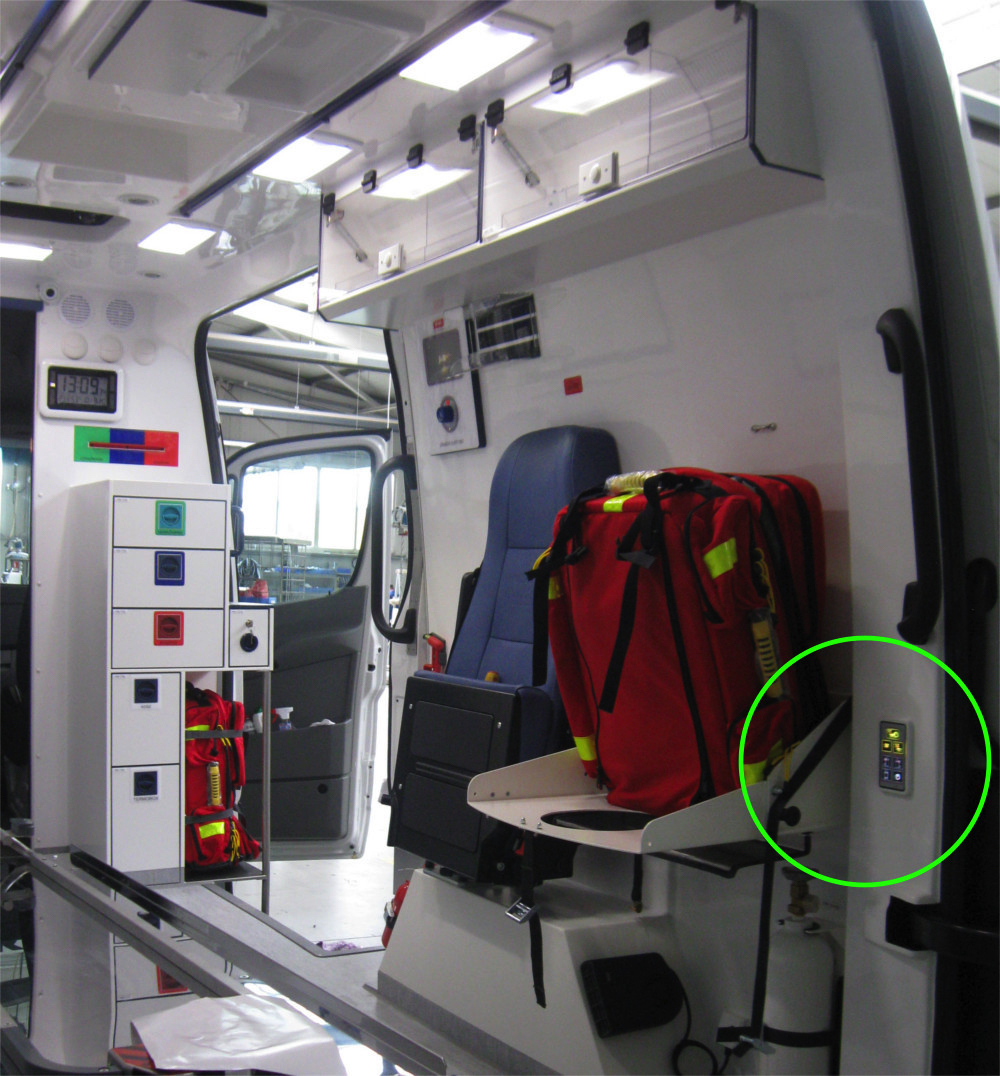

Button Panel mounted at the rear door.
Button Panel mounted at the rear door.
Remote light control using CAN-bus Keypads
Remote light control using CAN-bus Keypads
Remote light control
using CAN-bus Keypads
Remote light control using CAN-bus Keypads
CAN-bus
Keypads
CAN-bus Keypads
CAN-bus Keypads
CAN-bus Keypads

The Button Panel pictures

Multi-Color 7-Button Panel

● Interface: CAN-Bus 2.0

● Unit Connection: 4pin

● Power supply: DC 7V to 17V

● Power Current: operate 150mA, Sleep mode 0.37mA

● Operating Temperature: -30°C to 80°C

● Module Size: 6mm(D) x 55mm(W) x 100mm(H)

● Splash resistant

● Net Weight: 50gr.


Programmer CAN-Bus

OVERVIEW


You do not need to write programs, you receive all programs from us. All programs are given to you.

Free programmer of J&R Company allows you to upgrade software via CAN Bus.

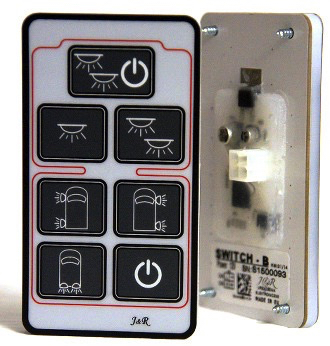

The Button Panel with CAN bus

Dimension

Multi-Color Button Panel
The Programmer CAN-Bus
Programmer CAN bus

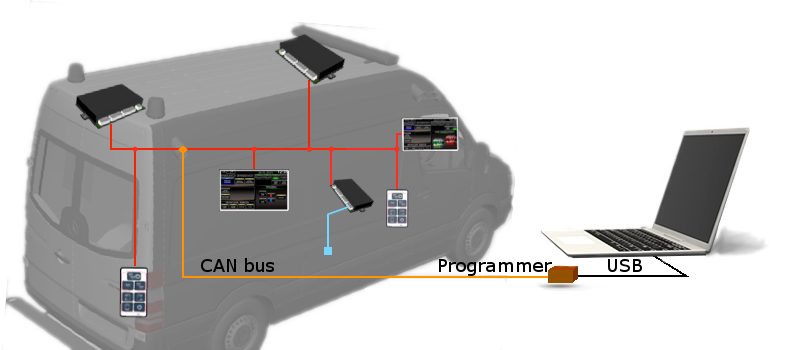

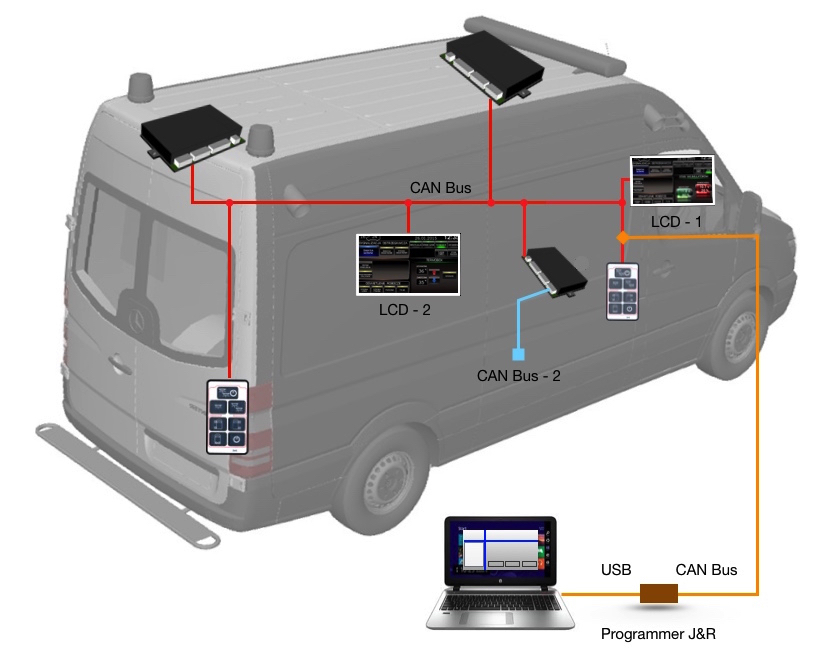

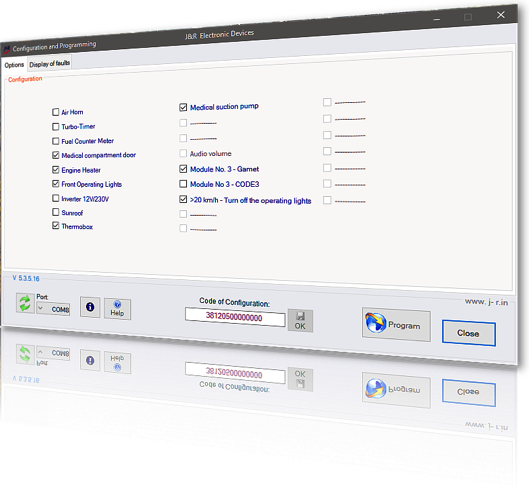

All devices connected to the Can Bus network can be programmed via the diagnostic connector

built-in with a free program “CANprog” J&R.

  • LCD

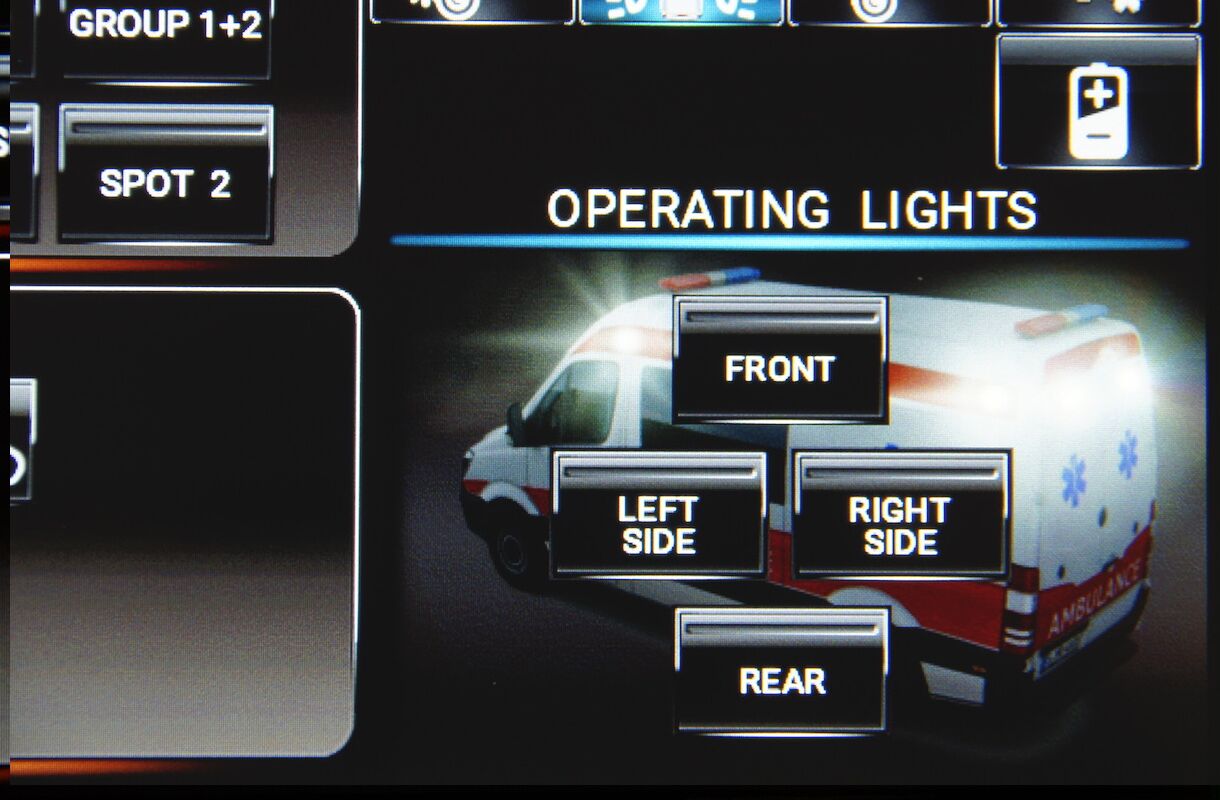

screen operating

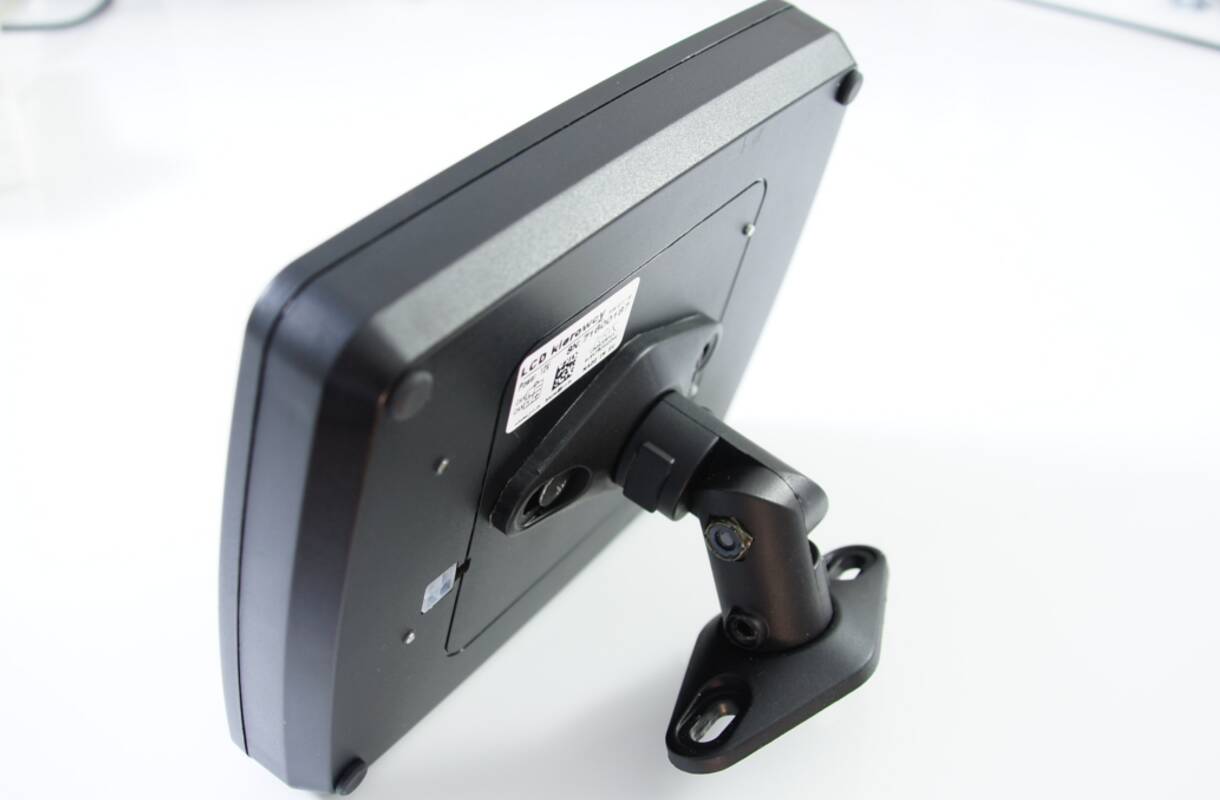

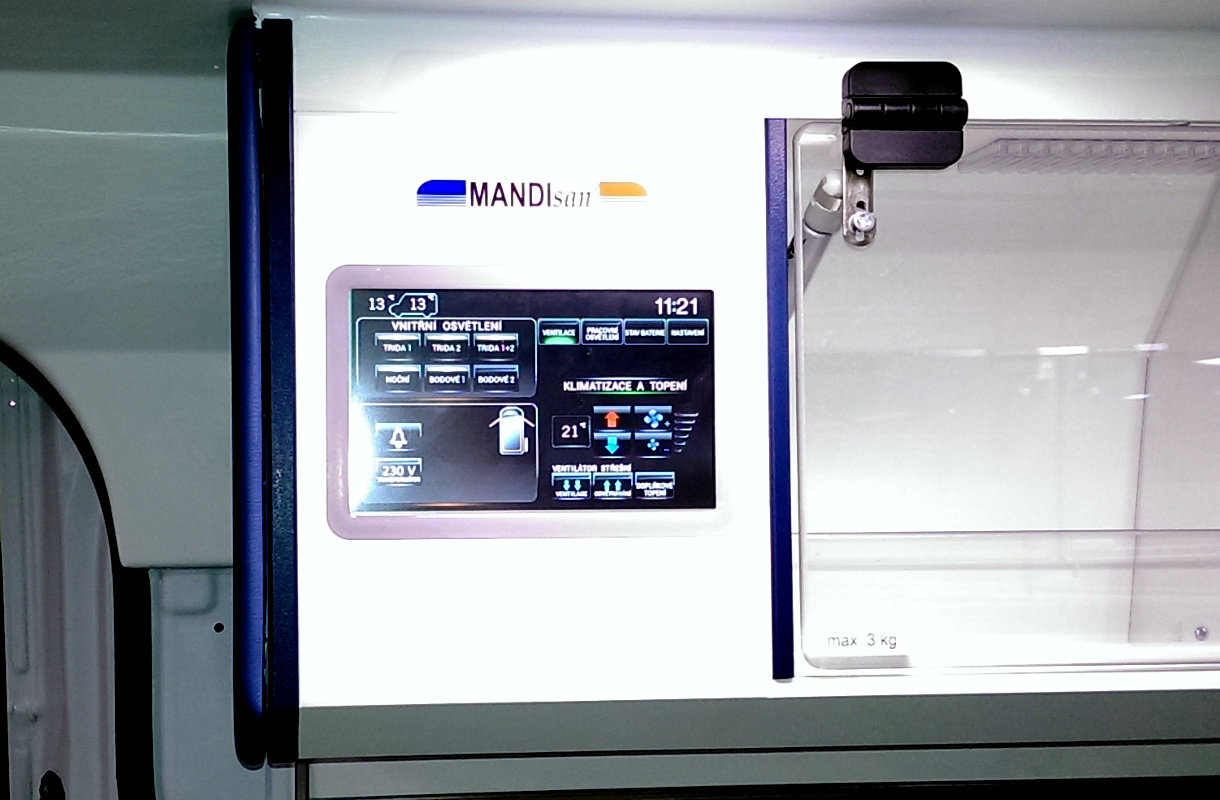

  • LCD screen case

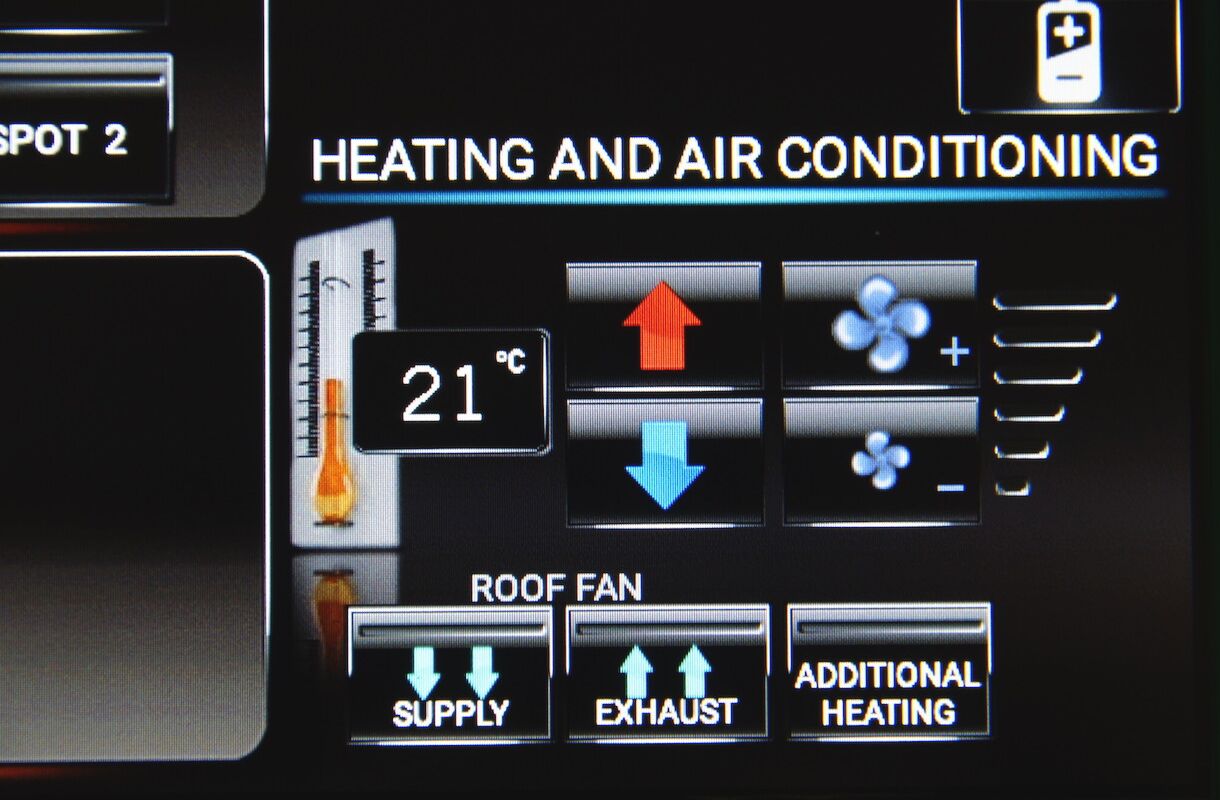

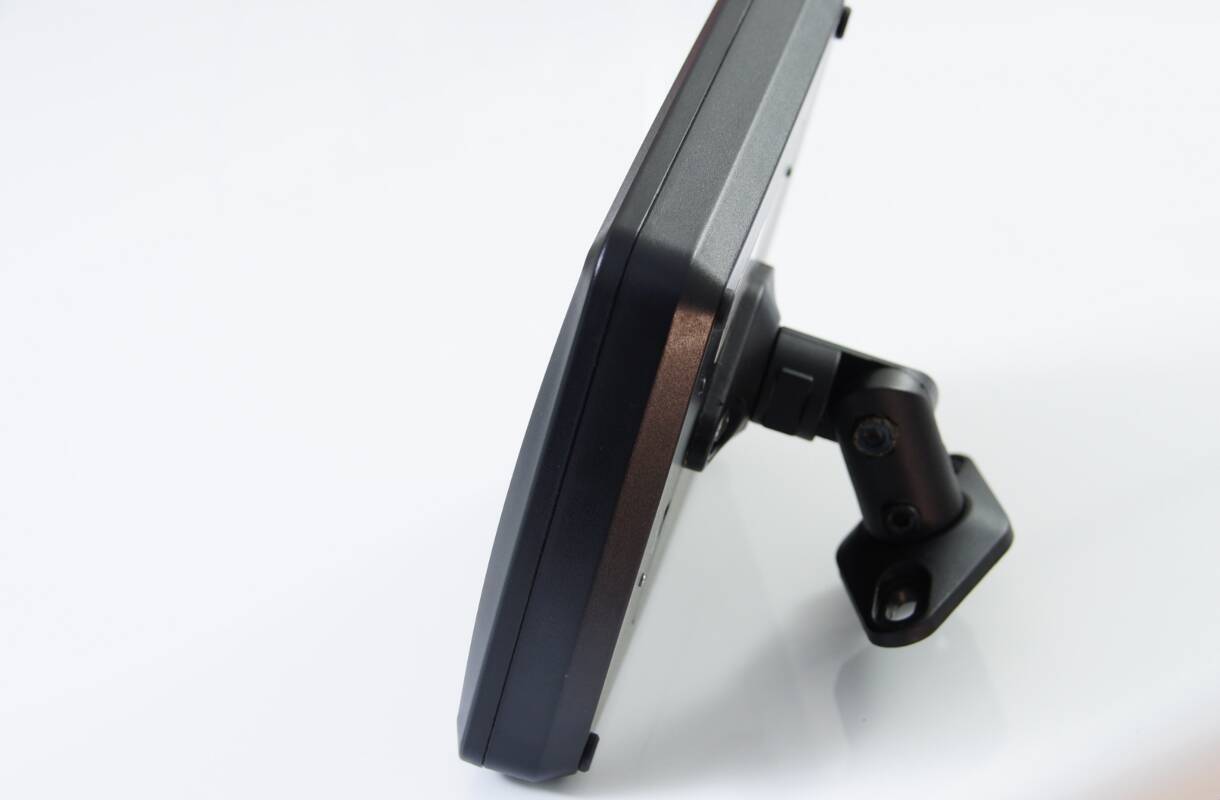

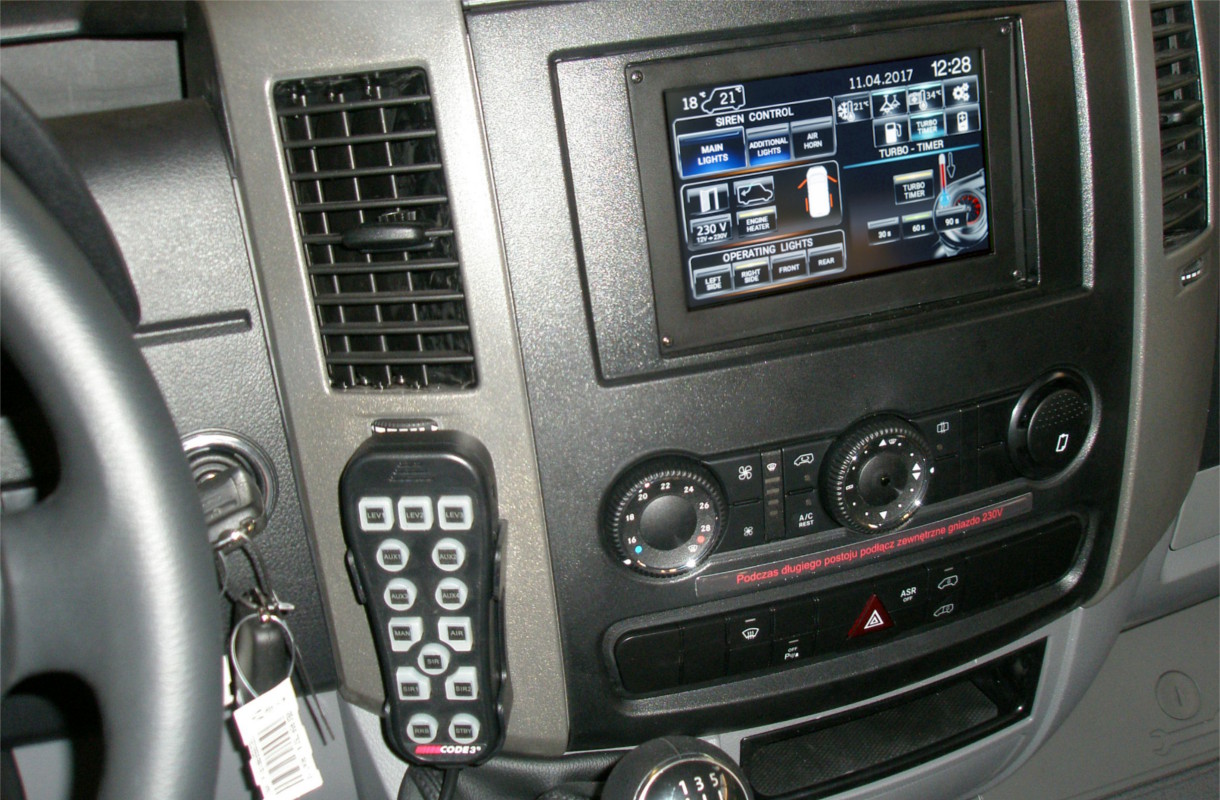

  • Driver operating panel with CAN bus
  • Operating panel with CAN bus
  • Driver operating panel with CAN bus

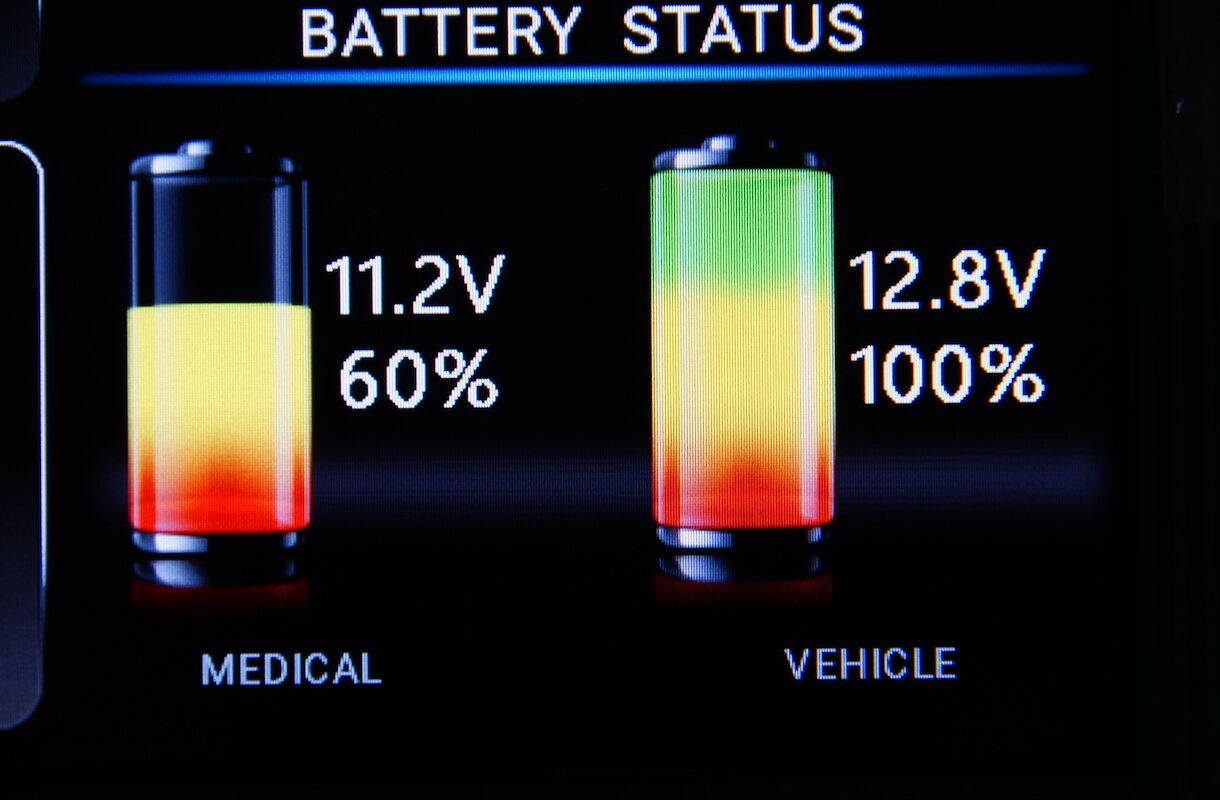

  • LCD screen battery

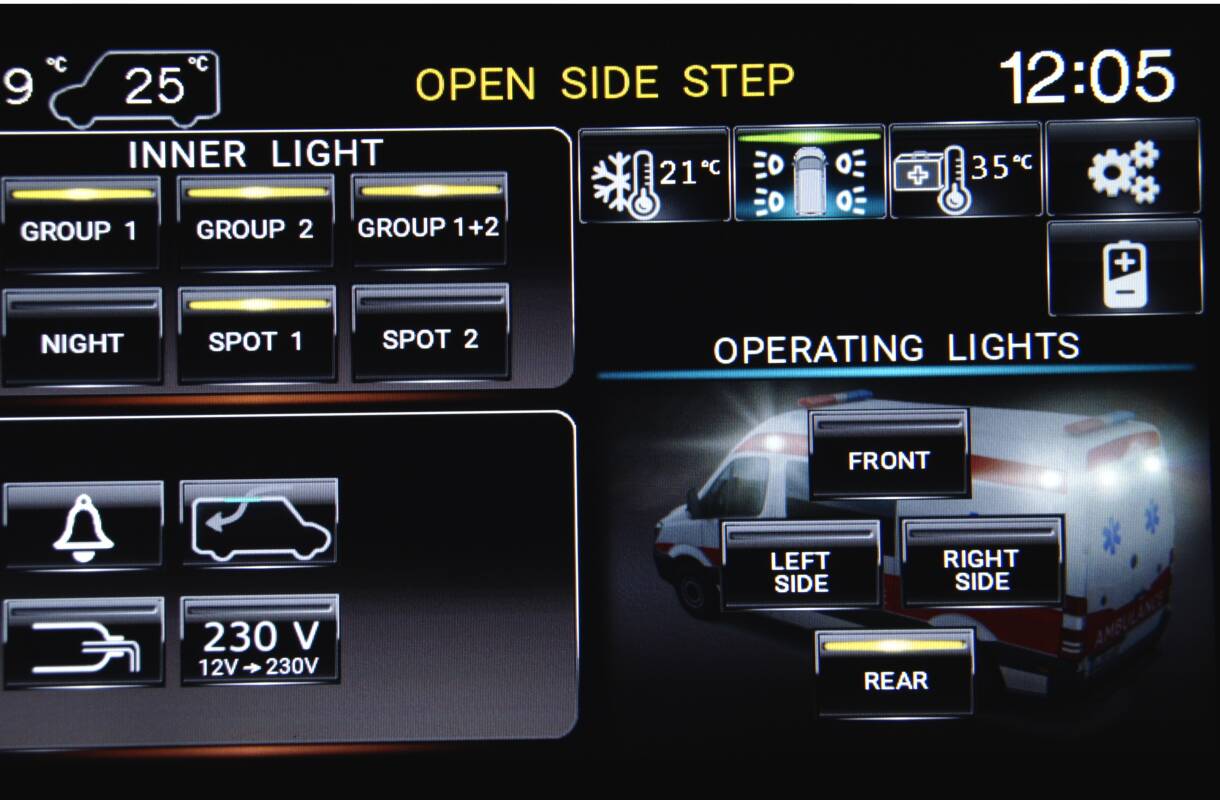

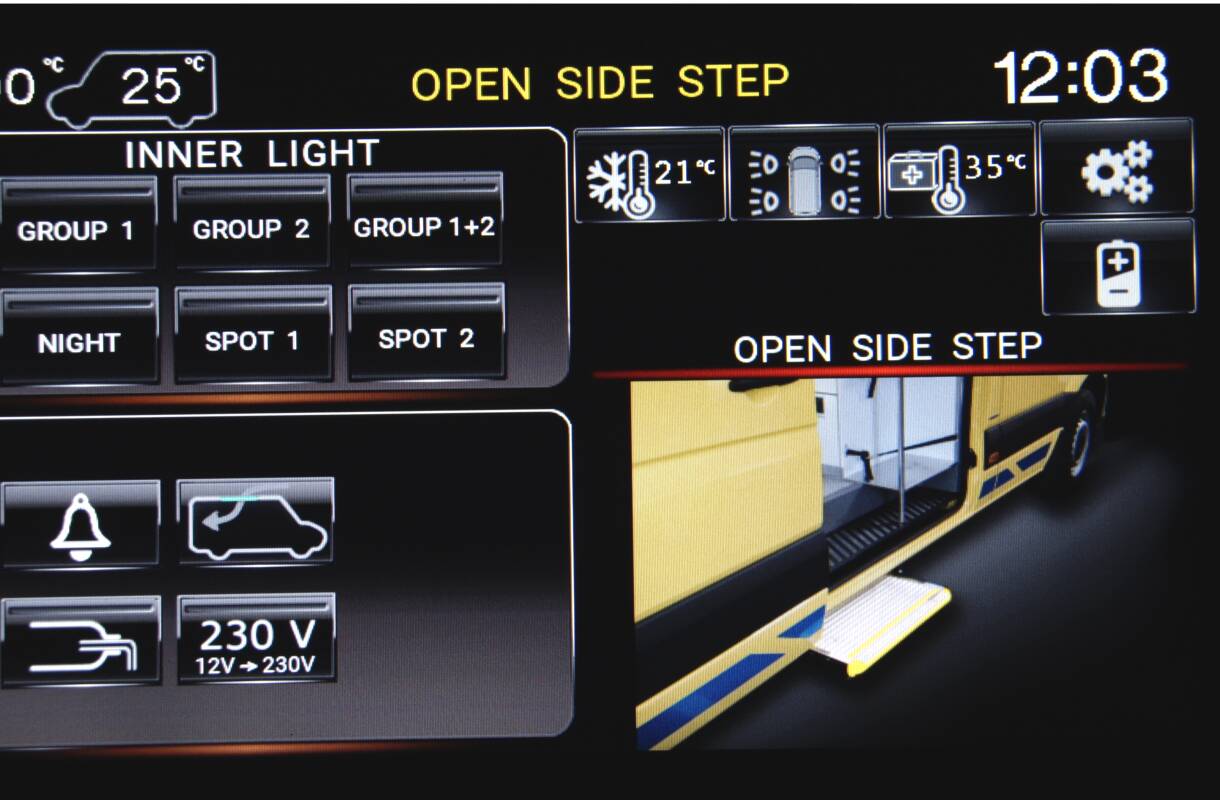

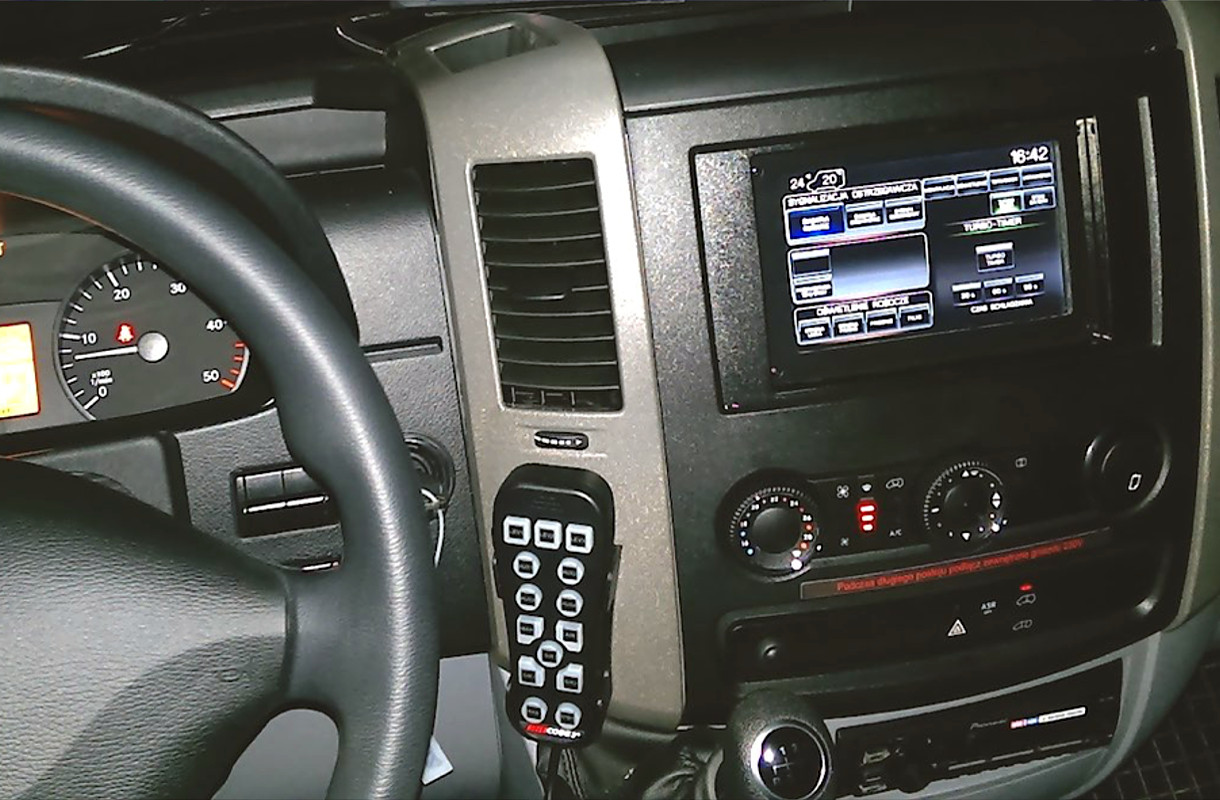

  • LCD screen open step 2

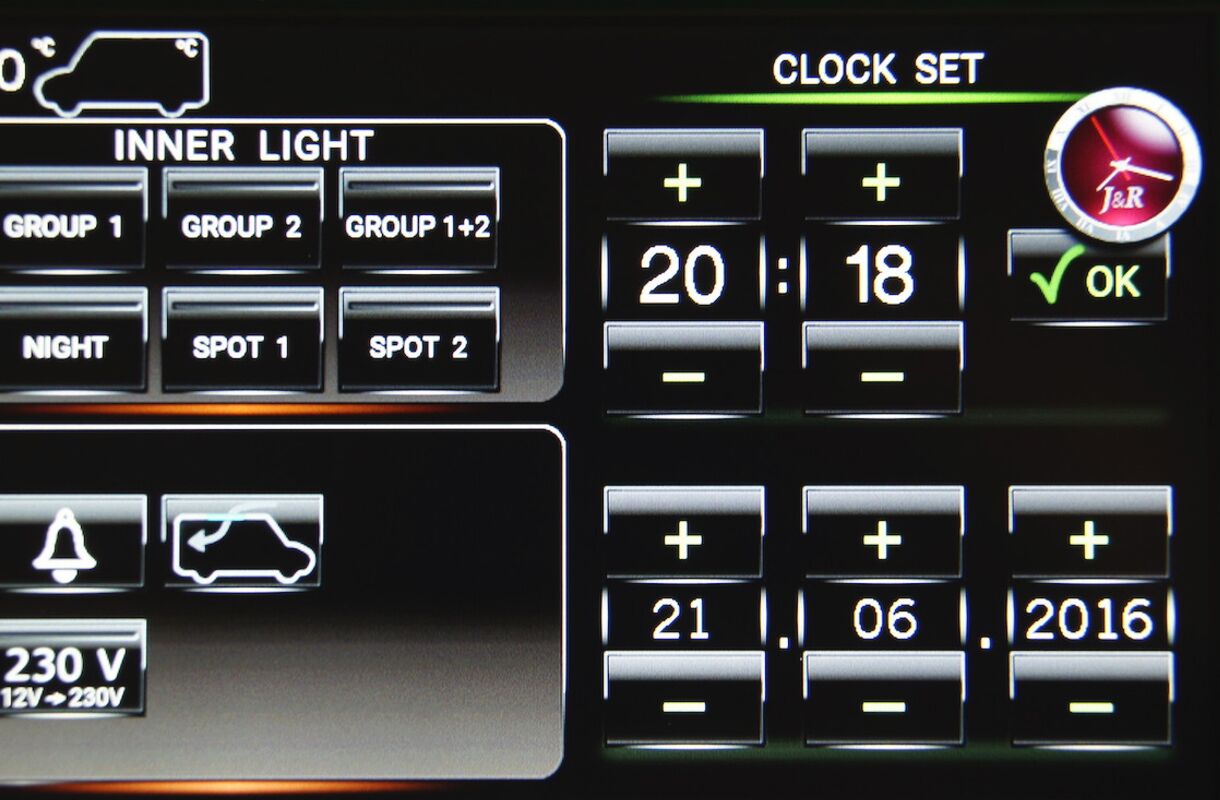

  • LCD screen clock
  • Driver operating panel with CAN bus

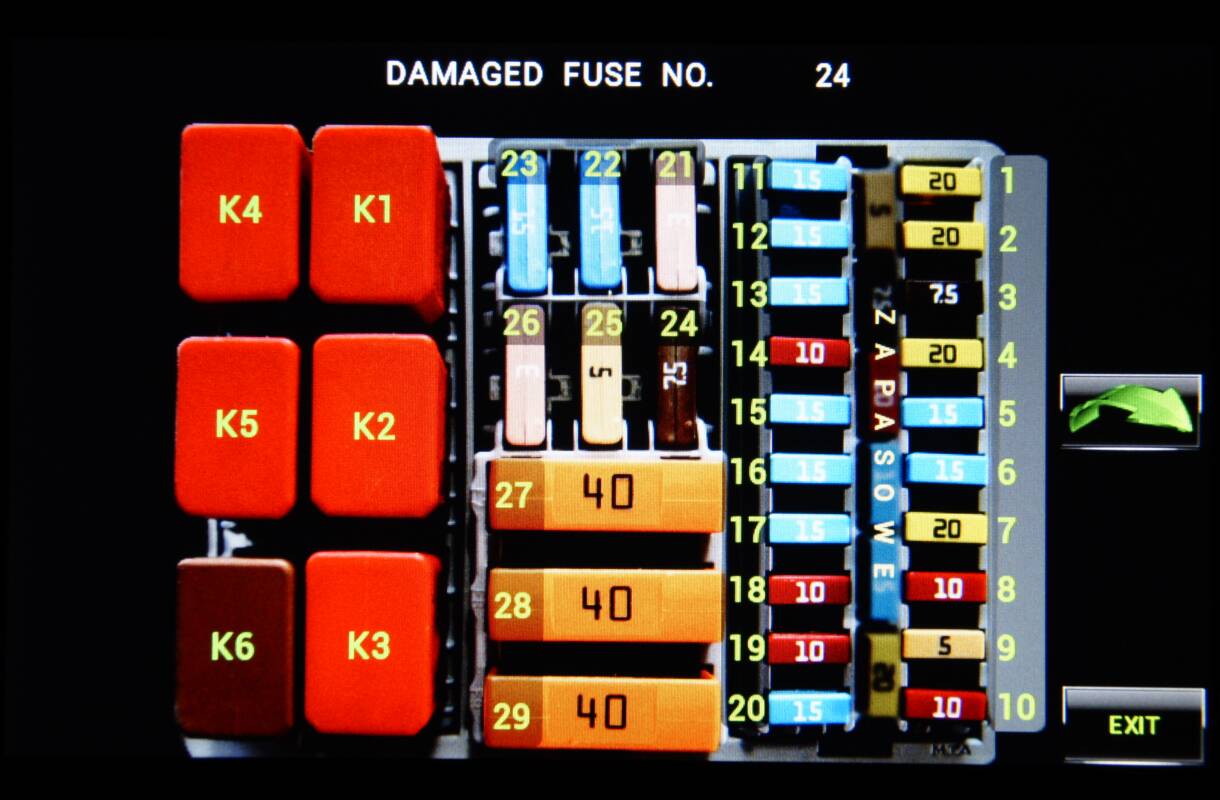

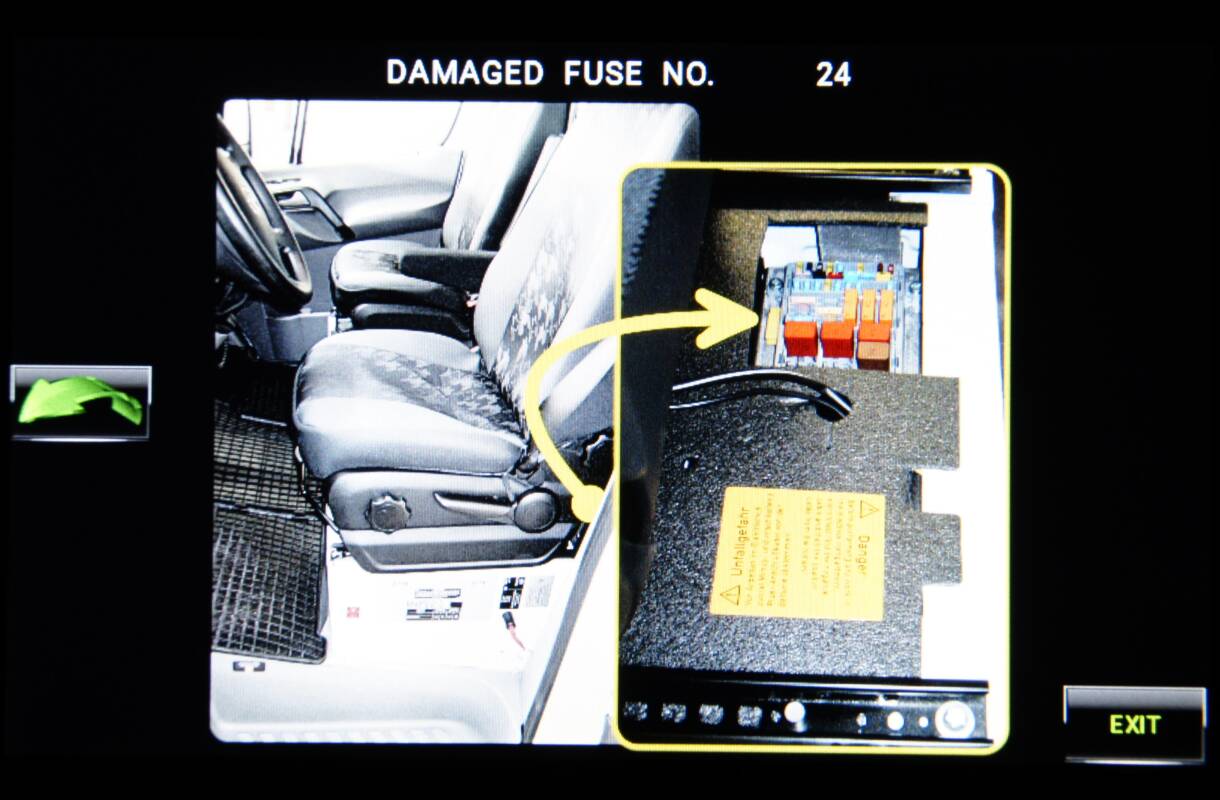

  • LCD screen Fuse damage
  • LCD screen inner light
  • Can bus LCD screen inner light
  • Driver operating panel with CAN bus
  • Operating panel with CAN bus
  • LCD screen lingua
  • LCD screen maintenance
  • LCD screen open side
  • LCD screen operating light
  • LCD screen power off
  • LCD screen settings
  • LCD screen open step
  • LCD screen settings
  • wowslider
  • LCD screen settings


The J&R Control is a CAN-Bus control system adapted to control retrofitted equipment in a vehicle such as

fans, work lights, directional warning lights, lightbars, interior lighting, thermobox and more.
